Product Details:
|
| Product Name: | Articulating Jib Crane | Keyword: | Jib Crane |
|---|---|---|---|
| Capacity: | 250KG | Lifting Height: | 3m |
| Span: | 2-6m | Feature: | Flexible Extension Operation |
| Hoisting Mechanism: | Electric Wire Rope Hoists & Chain Hoists | Application: | Production Or Maintenance |
| Speed: | 1-4m/min | Material: | Steel |
| Color: | Red/yellow/blue, Customized | Certificate: | CE,ISO9001:2015 |
| Guarantee: | 12 Months | ||
| High Light: | Articulating Jib Crane Free Standing,Articulated cantilever cranes,Articulating Jib Crane 250kg |
||
Flexible Free Standing articulating Jib crane 250kg cantilever cranes For factory Production Maintenance
Articulating Jib Crane Introduction:
Articulated cantilever cranes can place loads in areas that traditional cantilevers cannot reach.
When positioning loads within the entire coverage area of the crane, they provide convenient rotation and consistent response capability.
During operation, press the button to hoist the load, and use the bending and rotating motion of the beam to avoid objects in the control work area to maximize the work area. Gently push and pull by hand to reach any position in the work area. The crane is suitable for production or maintenance occasions in machinery manufacturing, railway, chemical industry, light industry and other industries, especially in the production line with dense equipment, short-distance hoisting, and frequent operations, the application of this product can improve production efficiency.
Articulating Jib Crane Safety features:
1. Overload protection: If the materials or electric current overstep the capacity, the crane;
will give a sharp warning for protection itself;
2. Rubber buffers;
3. Current overload protection system;
4. Voltage lower protection function.
Articulating Jib Crane Specification:
|
Type |
BZS0.5 |
BZS0.25 |
BZS0.125 |
|
Rated lifting capacity(kg) |
500 |
250 |
125 |
|
Rotation angle(o) |
0～360 |
0～360 |
0～360 |
|
Lifting speed(m/min) |
10/2.5 1.25/5 |
4/1 1.25/5 |
8/2 |
Capacity: Up to 1 ton
Arm length: up to 5 meters
Lifting height: up to 4 meters
operating duty. M3-M5
Rotation angle: 120-360 °
Working voltage: 220V~690V, 50-60Hz, 3ph AC
Crane control mode. Ground control/remote control

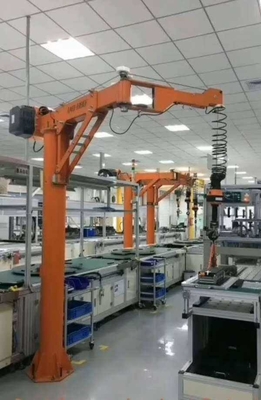

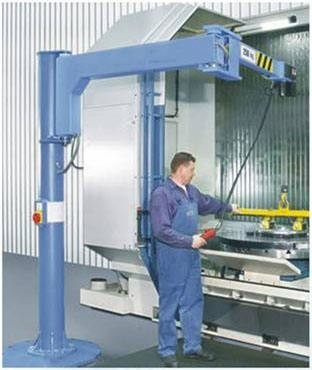

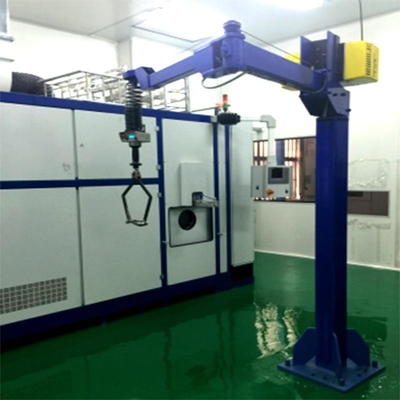

Articulating Jib Crane Photo:
