Product Details:
|
| Product Name: | Column Cantilever Crane | Keyword: | Jib Crane Hoist |
|---|---|---|---|
| Capacity: | 5ton | Lifting Height: | 3m |
| Span: | 2-4m | Feature: | Energy - Saving And Efficient |
| Hoisting Mechanism: | Electric Wire Rope Hoists & Chain Hoists | Application: | Factory |
| High Light: | Remote Control Jib Crane Hoist,5T Jib Crane Hoist,Jib Crane Hoist Energy Saving |
||

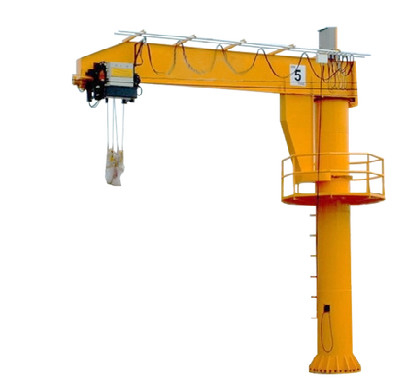

5T Column Cantilever Jib Crane Hoist Remote Control concrete foundation for factory assembly lines
Description:
The working strength of the jib crane is light. The crane is composed of a column, a slewing arm slewing drive device and an electric hoist. The lower end of the column is fixed on the concrete foundation by anchor bolts, and the cycloidal pinwheel reduction device drives the jib to rotate. The swing arm I-beam runs in a straight line from left to right, and lifts heavy objects. The jib of the crane is a hollow steel structure, which is light in weight, large in span, large in lifting capacity, economical and durable. The built-in traveling jib crane MODE type traveling mechanism adopts special engineering plastic traveling wheels with rolling bearings, which has low friction force and light travel; small structure size is especially beneficial to improve the hook stroke.
Features:

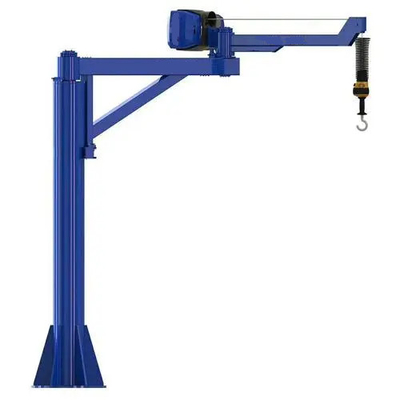

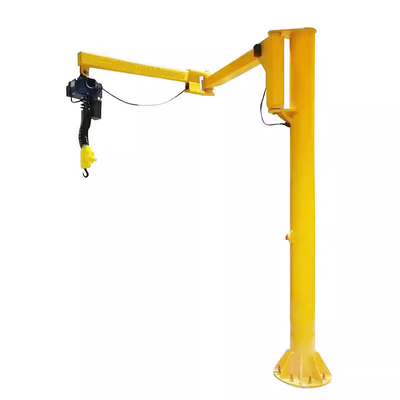

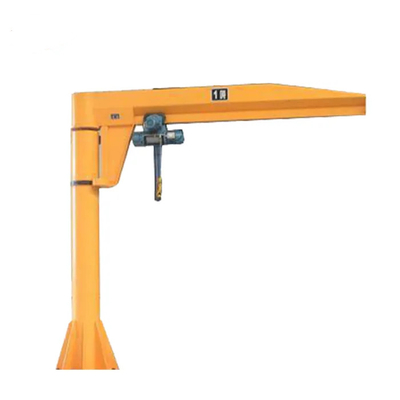

Fixed-column jib crane, also known as column-type jib crane, has a lifting capacity of 125Kg-5000Kg. Special lifting equipment can be designed and customized according to customer needs. It is the most commonly used jib crane.
The JIB crane can be used for many uses, like plant, farm, power station, construction site, etc.
The advantages of JIB crane:
compact structure, light weight, simple, convenient operation, flexible rotation and large working space. It is an energy-saving and efficient material lifting equipment.

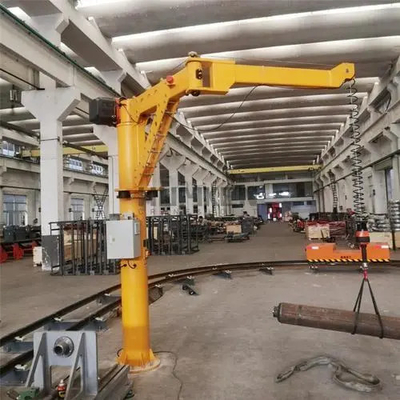

It can be widely used in factories, mines, workshops, production lines, assembly lines, and machine tools on and off work, as well as warehouses, docks and other occasions to lift heavy objects.
Installation:
The installation of the JIB crane is easy, we would offer clients detailed drawing of construction, we can offer all the parts even embedded parts,all customer needs to do is preparing the concrete and other basic construction work according to our drawing shows.
And we will also offer video instruction of the JIB crane, it will show you how to install the crane step by step. So no need to worry at all, we'll offer you rest-assured services at one station.
Drawing and Specification:
|
Rated Capacity |
t |
0.5 |
1 |
2 |
3 |
5 |
10 |
|
Beam length |
mm |
2000~6000 |
|||||
|
Lifting height |
mm |
2000~6000 |
|||||
|
Lifting speed |
m/min |
8; 8/0.8 |
|||||
|
Travelling speed |
m/min |
10; 20 |
|||||
|
Turning speed |
r/min |
0.76 |
0.69 |
0.6 |
0.53 |
0.48 |
0.46 |
|
Turning degree |
degree |
360° |
|||||
|
Duty Class |
A3 |
||||||
|
Power source |
380V, 50HZ, 3 phase (or other standard) |
||||||
|
Working temperature |
-20~42°C |
||||||
|
Control model |
Pendant pushbutton control or remote control |
||||||
Package and Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided:
