Product Details:
|
Product Name: | Articulating Jib Crane | Keyword: | Jib Crane |
---|---|---|---|
Capacity: | 250KG | Lifting Height: | 3m-5m |
Span: | 5m | Feature: | Flexible Extension Operation |
Hoisting Mechanism: | Electric Wire Rope Hoists & Chain Hoists | Application: | Production Or Maintenance |
Speed: | 1-2m/min | Material: | Steel |
Color: | Red/yellow/blue, Customized | Certificate: | CE,ISO9001:2015 |
Guarantee: | 14 Months | Color: | Customized |
Control Method: | Cabin/Remote | Hoist Speed: | 2m/min-5m/min |
Lift Height: | 5m | Lifting Speed: | 2m/min-5m/min |
Material: | Q235B Steel | Power Supply: | 3-Phase AC 380V |
Product Name: | Jib Crane Hoist | Protection Grade: | IP44/54 |
Service: | OEM/ODM | Trolley Speed: | 2m/min-20m/min Customize |
Warranty: | 1 Year | Surface Treatment: | Painting |
With Hoist Or Not: | Can Be Customized | ||
High Light: | 250kg electric jib crane,light duty cantilever electric jib crane,250kg cantilever jib crane |
Flexible Free Standing Articulating Jib Crane250kg Cantilever Jib Cranes For Factory Maintenance Rotation Angle
Flexible Free Standing articulating Jib crane 250kg cantilever cranes For factory Production Maintenance
What is a Jib Crane? It is a crane with a horizontal member, commonly known as the jib or boom. A jib is an operating arm that extends horizontally from the crane. The role of the jib is to support a movable hoist fixed to either a wall or pillar mounted on the floor. It is mostly used in industrial premises.
The Jib crane design allows simple handling and easy movement.Sometimes the employees can't perform the handling as the goods are too heavy for them, that's why Jib crane required. It can lift heavy goods easily and avoid possible injuries in your workplace and it's a common lifting aid in a number of industries. Besides, it's position and lifting height and reach can be adjusted, flexible to your needs.
Other times, cranes are fitted on top of warehouse floors to help with lifting goods on the floors to top places. On the load, there are cables attached several times around a fixed block and directly on the load. The end of the cable that is not connected is either pulled manually or by using a winding device.
Articulating Jib Crane Introduction:
Articulated cantilever cranes can place loads in areas that traditional cantilevers cannot reach.Their two flexiable arms are its biggest advantage.
Articulating Jib Cranes provide maximum material handling flexibility in a manufacturing facility. They include two rotating arms that enable the system to maneuver loads around obstacles. They provide easy rotation and precision load placement when placing loads in tight areas. These cranes can even reach around corners and under other equipment.
Articulating Jib Crane Safety features:
1. Overload protection: If the materials or electric current overstep the capacity, the crane;
will give a sharp warning for protection itself;
2. Rubber buffers;
3. Current overload protection system;
4. Voltage lower protection function.
Articulating Jib Crane Specification:
Capacity: 250KG
Arm length: up to 5 meters
Lifting height: 3-5 meters
operating duty. M3-M5
Rotation angle: 120-360 °
Working voltage: 220V~690V, 50-60Hz, 3ph AC
Crane control mode. Ground control/remote control
with hoist or not: with hoist, 1 set.
Control: remote control
Customise to your requirements.
This particular product can be customised to your workshop. Just speak to one of our sales representatives today and we will choose the best solution for you.
It can also be partnered with a huge range of optional accessories, making it extremely versatile. Some available items include hoists and trolleys (motorised or manual), limits and other accessories.

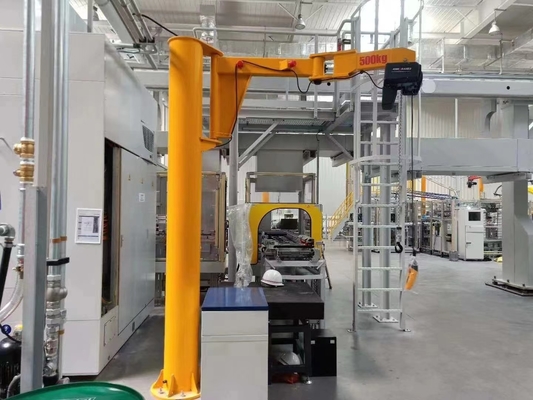

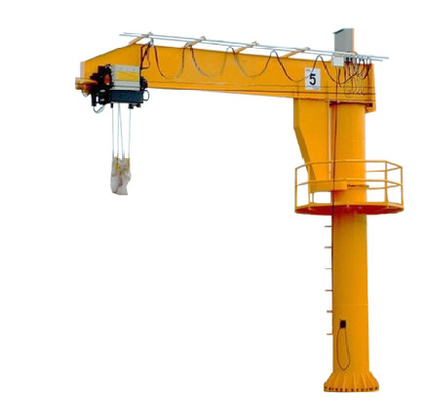

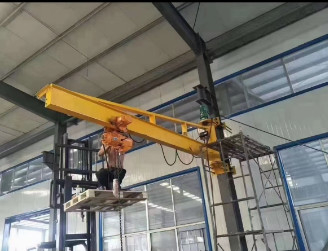

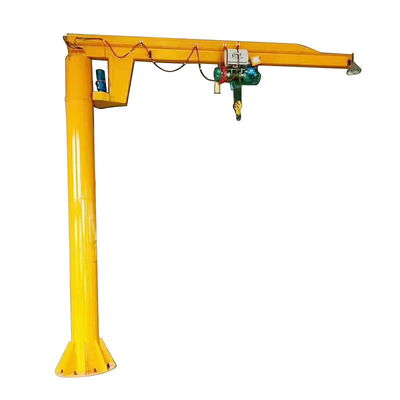

Articulating Jib Crane Photo:
