Product Details:
|
| Keywords: | Single Girder Gantry Crane | Feature: | L Leg Model Box Single Main Beam |
|---|---|---|---|
| Span: | 5-40m | Max. Lifting Load: | 50 Ton |
| Max. Lifting Height: | 25m | Application: | Construction,Warehouse,Mining,Plants |
| Color: | Customer Requirements | Main Electrical Parts: | Schneider,SIMENS Or As Request |
| Power Source: | 3 Phase 380V 50hz | Lifting Speed: | 0~8m/min |
| High Light: | pulley free single girder gantry crane,50 tons single girder gantry crane,50 tons single girder crane |
||
With Pulley Free Mobile Outdoor 50tons Heavy Duty Single Girder Gantry Crane
Introduction:

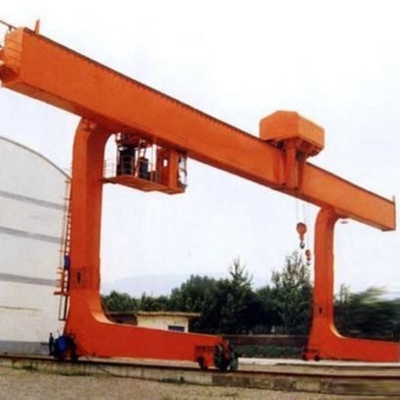

L-type single girder gantry crane, the metal structure is like a gantry frame. The main beam is box type, with good craftsmanship, easy production, high strength and strong adaptability. Two outriggers are installed under the main beam, which can be directly on the track. There can be cantilever beams at both ends of the main beam. L-type single-girder gantry cranes are mainly used for the loading and unloading of outdoor freight yards, storage yards and bulk cargo.
Simple structure, easy to install and operate.
Smooth starting and ending, complete mobility.
Stable performance, less maintenance.
High-cost performance, low operational cost.
Wide range of applications, indoors and outdoors.
Perfect for business or buildings that cannot facilitate an overhead crane
Technical Parameter:
| Capacity | t | 10 | 16 | 20/10 | 30/10 | 36/16 | 50/10 | ||
| Span | m | 18-35 | 18-30 | 18-35 | 22-26 | 26-30 | 32 | ||
| Duty | medium | medium | medium | medium | Heavy | Heavy/medium | |||
| lifting height | main | m | 11.5 | 12.5 | 10.5 | 11.5 | 11.5 | 12 | |
| aux. | / | / | 11 | 12 | 12 | 13 | |||
| speed | hoist | main | m/min | 18.4 | 12.3 | 9.2 | 10.4 | 10.4 | 6 |
| aux. | / | / | 18.4 | 18.4 | 12.3 | 18 | |||
| traversing | 43.8 | 44.5 | 44 | 41.9 | 53 | 38.13 | |||
| travelling | 48.4-54.6 | 49.1-51.2 | 51 | 51.2 | 51.1 | 43.8 | |||
Application:
Gantry cranes are mainly used for the loading and unloading of outdoor cargo yards, stockyards and bulk cargoes. Its metal structure is like a door-shaped frame, and two feet are installed under the bearing main beam, which can walk directly on the track on the ground, and the two ends of the main beam can have outrigger cantilevers. Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port cargo yards.

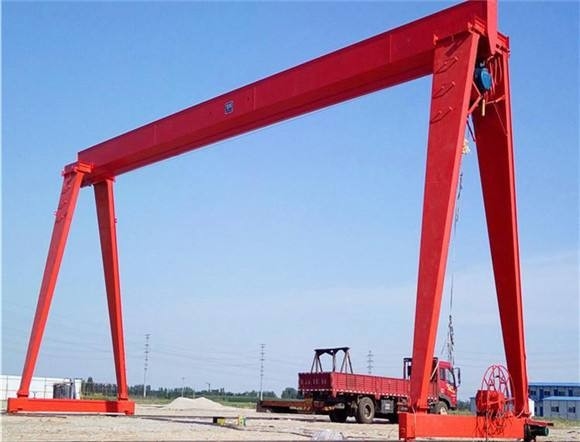

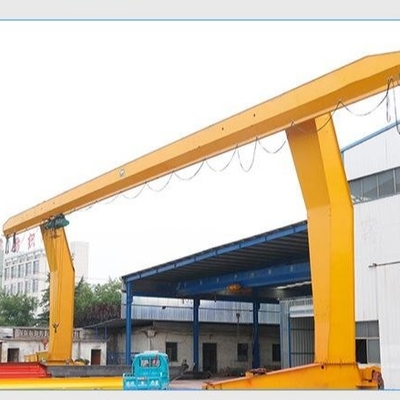

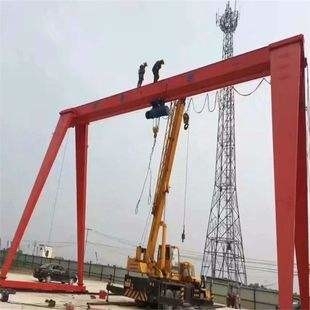

Photos:
