Product Details:
|
| Keyword: | Double Beam Electric Hoist | Type: | BD 2~100T |
|---|---|---|---|
| Sling Type: | Wire Rope | Core Components: | Bearing , Motor , Pump |
| Color: | Customized | Hook: | High Strength |
| Condition: | New | Power Source: | Electric |
| Lift Speed: | 0~8m/min | Weight: | 200kg |
| Application: | Widely | Certification: | CE ISO CCC |
| Warranty: | 12 Months Electric Wire Rope Hoist | Power Supply: | AC 380V 50Hz Three-phase |
| High Light: | lifting trolley wire rope crane hoist,20 ton wire rope crane hoist,20 ton hoist rope crane |
||
Technical parameter:
| Loading capacity | 0.5 ~ 80t |
| Lifting height | 3 ~ 35 m or customized |
| Lifting speed |
Single speed: 0.3 ~ 8 m/min; or customized Double speed: 0.3/3 m/min, 0.7/7 m/min or customized |
| Working class | M3 ~ M4 |
| Working temperature | -20 ~ 40 ℃ |
| Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
| Control voltage | DC-36 / 48V |
| Motor protection class | IP54 / IP55 |
| Control way | Ground handle control(Push button),wireless remote control,cabnient control |
| Safety device | Buffer,current overload protection,overload device,power failure protection |
| Application area | Factory,workshop,warehouse,power station,logstic,etc. |
| Painting color | Yellow,Red or Customzied |
Wire rope hoists are versatile lifting devices that find applications in various industries and settings. Some of the common applications of wire rope hoists include:
1. Manufacturing and Production: Wire rope hoists are widely used in manufacturing facilities for lifting and moving heavy components, machinery, and equipment during production processes. They are often employed in industries such as automotive, aerospace, steel, and fabrication.
2. Construction: In the construction industry, wire rope hoists are utilized for lifting and positioning heavy building materials, such as steel beams, precast concrete elements, and construction machinery. They are commonly used in construction sites, bridge construction, and high-rise building projects.
3. Warehousing and Logistics: Wire rope hoists play a crucial role in material handling and logistics operations within warehouses and distribution centers. They are used for loading and unloading heavy pallets, containers, and equipment, as well as for stacking and storing goods at different heights.
4. Ports and Shipping Yards: Wire rope hoists are employed in ports and shipping yards for handling cargo containers, loading and unloading ships, and moving heavy freight and equipment. They offer the necessary lifting capacity and control required in these demanding environments.
Advantages:
1. Safety Features: Wire rope hoists are equipped with various safety features to ensure safe operation. These may include limit switches, overload protection devices, emergency stop buttons, and secondary braking systems, providing protection against overloading, excessive travel, and other potential hazards.
2. Easy Maintenance: Wire rope hoists are designed for ease of maintenance. They often have accessible components and user-friendly design features, allowing for convenient inspection, lubrication, and replacement of wear parts. This helps to minimize downtime and prolong the hoist's lifespan.
3. Cost-Effective: Wire rope hoists are generally considered cost-effective compared to other types of hoisting systems. They offer a good balance between lifting capacity, performance, and cost, making them a practical choice for many lifting applications.

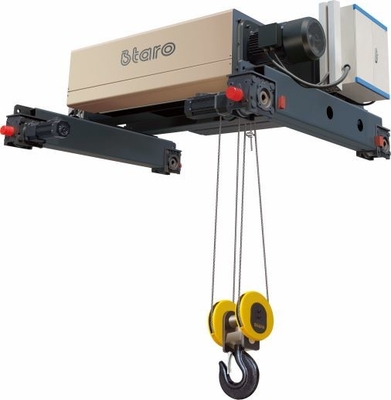

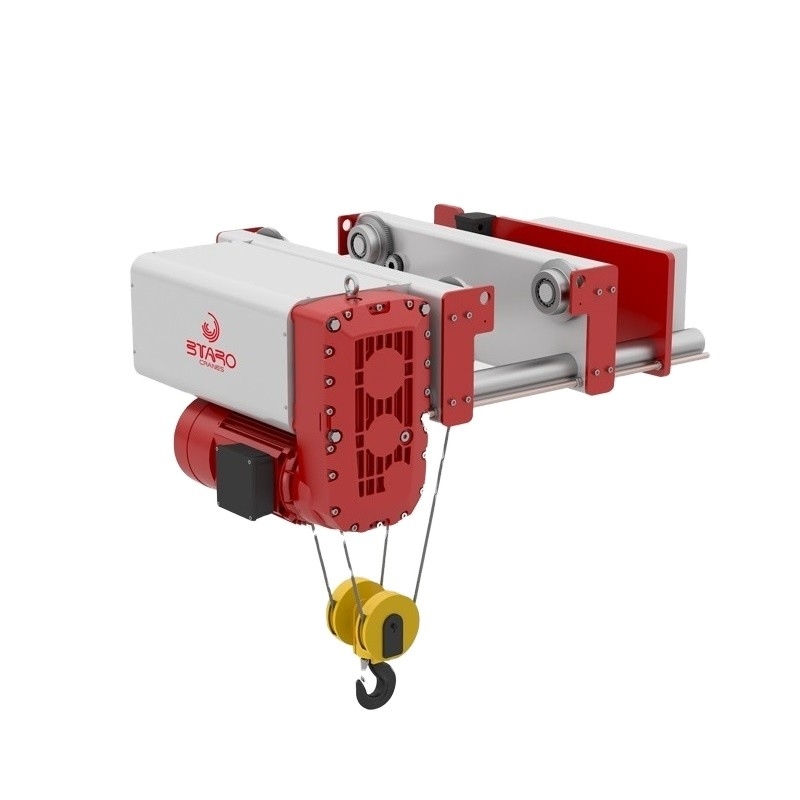

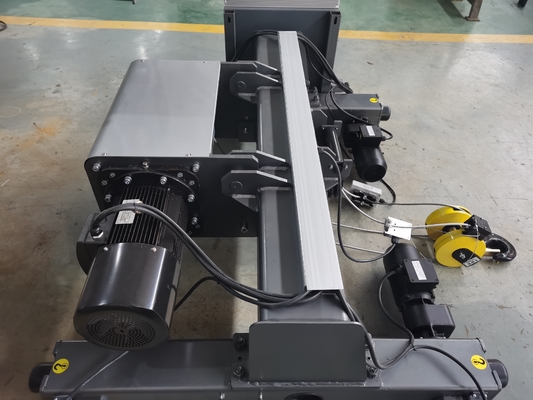

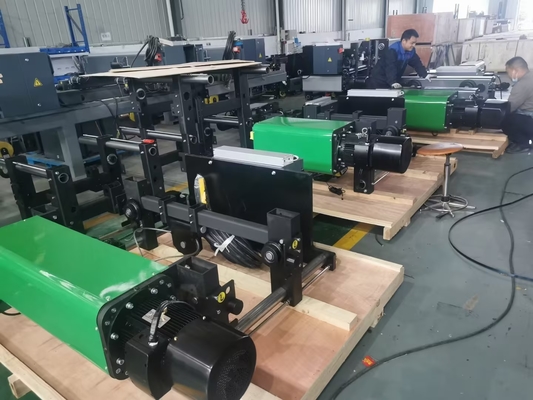

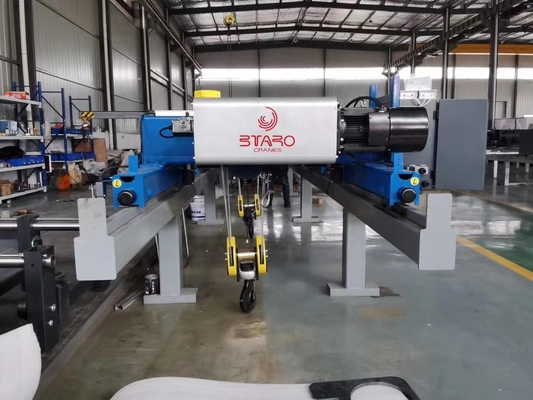

Photo:
