Product Details:
|
| Keywords: | Mini Gantry Crane | Condition: | New |
|---|---|---|---|
| Feature: | Box Beam Strong Rigidity | Span: | 5-40m |
| Max. Lifting Load: | 3ton | Max. Lifting Height: | 9m,12m,6m |
| Control Method: | Wireless Remote Control,Ground Control | Power Source: | 3 Phase 380V 50hz Or Accord Your Requirements |
| Application: | Construction,Warehouse,Workshop,Mining,Plants | Warranty: | 12 Months,one Year For Main Parts |
| Lifting Speed: | 0-8m/min | Color: | Red / Yellow / Customized Color |
| High Light: | durable frame single girder gantry crane,1 ton single girder gantry crane,2 ton single girder overhead crane |
||
Durable Frame Henan China Mini Mobile Crane 1 Ton 2 Ton 3ton Single Girder Gantry Crane
Introduction:
Portable gantry cranes are commonly used in various industries and applications where there is a need for lifting and moving heavy loads. They are often used in workshops, warehouses, construction sites, and other industrial settings. These cranes are capable of lifting loads ranging from a few hundred kilograms to several tons, depending on their design and specifications.
A portable gantry crane is a type of crane that is designed to be easily transported and assembled in different locations. It consists of a horizontal beam or girder supported by vertical legs on each end, creating a stable and movable framework.
The lifting capacity, height, and span of a portable gantry crane can vary depending on the specific model. Some portable gantry cranes are manually operated, while others may have electric or hydraulic systems for lifting and movement. They can be equipped with different types of lifting mechanisms, such as chain hoists or wire rope hoists, to suit specific lifting requirements.
Advantage
The main advantages of a portable gantry crane are its mobility and versatility. It can be disassembled into smaller components, making it easier to transport to different job sites or locations. Once at the desired location, the crane can be quickly assembled and put into operation, providing a convenient lifting solution.
Cantilever Gantry Crane
1. Double cantilever gantry crane: the most common structural form, the force of the structure and the effective use of the site area are reasonable.
2. Single cantilever gantry crane: This structural form is often selected due to site constraints.
Technical Parameter:
| Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 12,16,20,24,30 | ||||||
| Operational method | Pendent Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting |
m/min |
8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross travelling | 20 | 20 | 20 | 20 | 20 | |||
| Long travelling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross travelling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8×2 | ZDY121-4/0.8×2 | YZD-4/0.8×4 | |||
| Long travelling | Ground | ZDY21-4/0.8×2 ZDY21-4/1.5×2 |
YZY22-4/1.5×2 YZR132M2-6/3.7×2 |
YZR22-4/1.5×2 | YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
||
| Cabin | ZDR100-4/1.5×2 ZDR112-4/2.1×2 |
YZR112L1-4/2.1×2 YZR160M1-6/2.1×2 |
YZR112L1-4/2.1×2 YZR160M2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
|||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 60HZ 3phase AC (According to your demand ) | |||||||
Gantry crane features:
1. Overloading is efficient;
2. Suitable for any environment (high temperature, explosion-proof, etc.);
3. Long lifespan: 30-50 years;
4. Easy installation and maintenance;
5. Reasonable structure and strong rigidity;
6. Speed variable frequency speed regulation;
7. The control method is cabin control or remote control;
8. According to the lifting cargo, the crane can be equipped with beam magnet or magnet chuck or grab bucket or C hook;
9. The crane is equipped with all standard safety devices such as mobile limit switches and loading limits to ensure the safe operation of the crane.
Application:
Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port cargo yards.

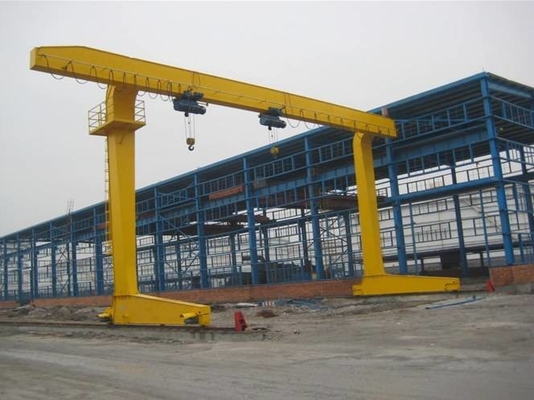

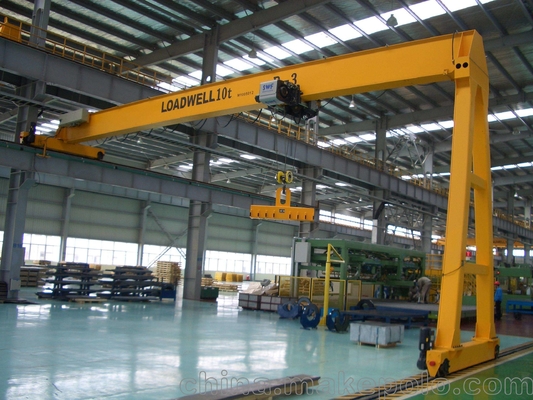

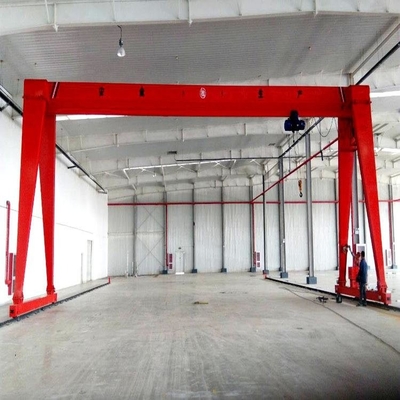

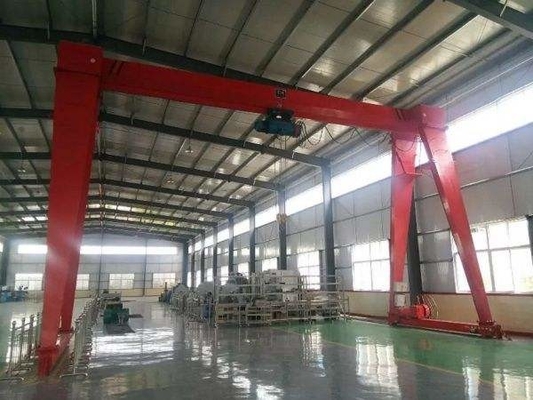

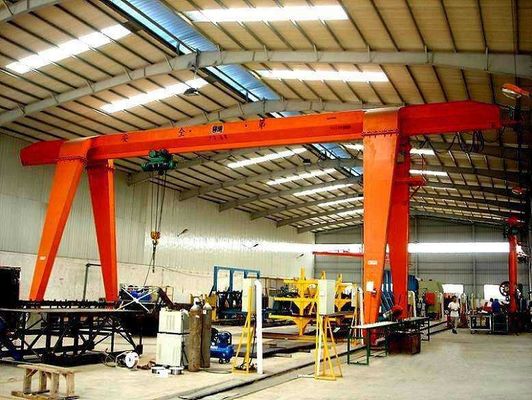

Photos:
