10 Ton 15 Ton Electric Wire Hoist With Hooks For Lifting Material Handing

10 Ton 15 Ton CD Electric Hoist M3-M6 Electric Wire Rope Hoist With Hooks For Lifting Material Handing

Brief Introduction

Electric wire rope hoist widely applied to lifting heavy weight or being installed with single-girder electric crane or straight and curve T-shape beam;It is also used in the hoist double beam, gourd gantry crane or cantilever crane;It is easily operated in the factory, warehouse, railway and dock etc.

Conponents:

1.Hoist Motor: The hoist motor provides the power to lift and lower the load. It is typically an electric motor that drives the hoist mechanism.

2.Gearbox: The gearbox is responsible for transmitting the power from the motor to the hoist drum. It contains a set of gears that control the speed and torque of the hoist operation.

3.Hoist Drum: The hoist drum is a cylindrical drum around which the wire rope is wound. It is connected to the gearbox and rotates to raise or lower the load.

4.Wire Rope: The wire rope is a strong and flexible rope made of multiple strands of wire. It is wound around the hoist drum and provides the lifting capability. The wire rope is designed to handle heavy loads and is available in various sizes and configurations.

5.Load Block or Hook: The load block, also known as the hook assembly, is attached to the end of the wire rope. It consists of a hook or other load attachment device that securely holds the load during lifting operations.

6.Brake System: The brake system is responsible for controlling the movement of the load and preventing it from free-falling or slipping. It typically includes a mechanical or electromagnetic brake that engages when the hoist motor is not actively lifting or lowering the load.

Technical parameter

1. Reducer: adopt third-class dead axel helical gear transmission structure gear and geaaxel are made of heat treated alloy steel

2. Button Switch: easy to operate, safey for operator, both remote control and pendant control are available.

3. Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F.

4. Protection grade: IP54, work grade: M3

5. Over load limit is available. Hook is widen and thicken

6. Power-Off protection, Emergency stop system.

7. Low noise, soft starting and stopping

8. Safe and reliable operation

9. One year warranty for whole machines

10. Providing free quick-wear part

11. Low charge for continue maintenance when warranty is expired

12. Exclusive engineer support at any time.

13. Highly professional training to end-users.

Applications:

1. Power Plants: Wire rope hoists are used in power plants for maintenance and installation of heavy equipment, such as turbines, generators, and transformers. They are also used for lifting and positioning heavy parts during repairs and upgrades.

2. Automotive Industry: Wire rope hoists find application in the automotive industry for lifting and moving heavy vehicles, engines, and assembly line equipment. They are used in assembly plants, testing facilities, and maintenance areas.

3. Entertainment and Stage Rigging: Wire rope hoists are utilized in the entertainment industry for stage rigging and theatrical productions. They are used for lifting and lowering stage equipment, lighting fixtures, and scenery during performances.

4. Oil and Gas Industry: Wire rope hoists are used in the oil and gas industry for lifting and moving heavy equipment, pipes, and drilling tools on offshore platforms and drilling rigs. They are essential for drilling operations, maintenance, and equipment installations.

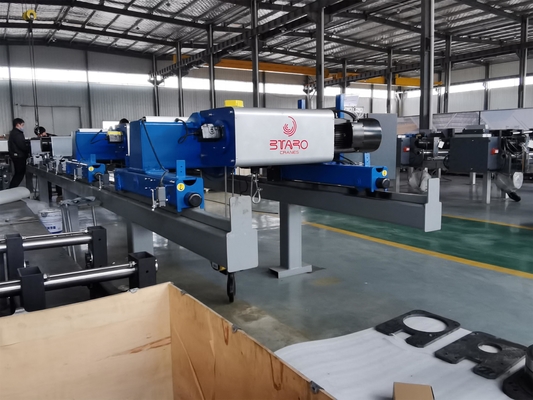

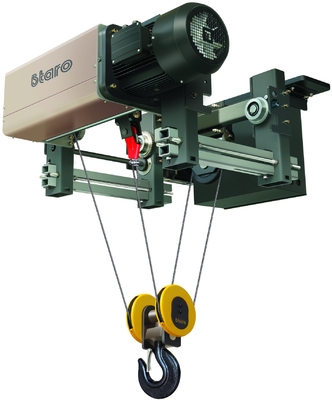

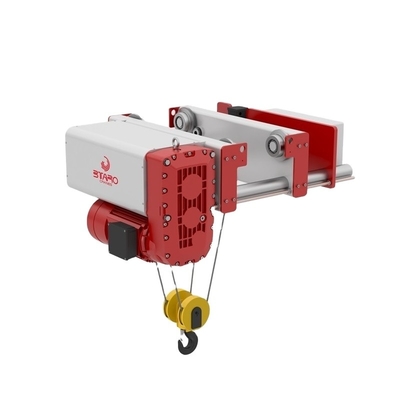

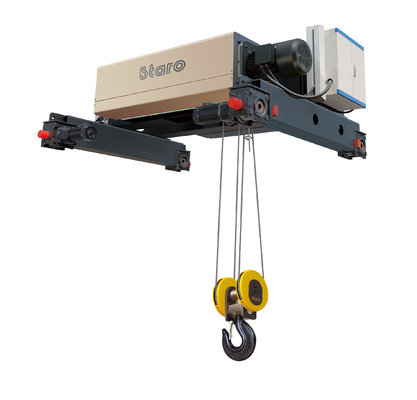

Photo:
