Product Details:
|
| Keywords: | Single Beam Bridge Crane | Span: | 5-40m Or On Request |
|---|---|---|---|
| Feature: | Bridge Crane | Max. Lifting Height: | 9m,12m,6m |
| Max. Lifting Load: | 10 Ton | Lifting Speed: | 8/0.8 M/min |
| Control Method: | Wireless Remote Control And Ground Control | Power Source: | 3 Phase 380V 50hz |
| Crane Feature: | Easy Operated Girder Bridge Crane | Application: | Workshop,Warehouse,factory |
| High Light: | 8/0.8M/Min Single Beam Bridge Crane,MD1 hoist single beam bridge crane,10 ton bridge crane for workshop |
||

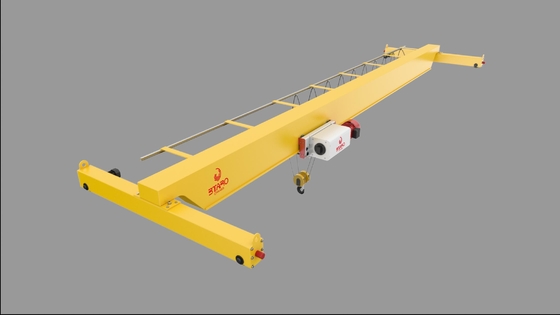

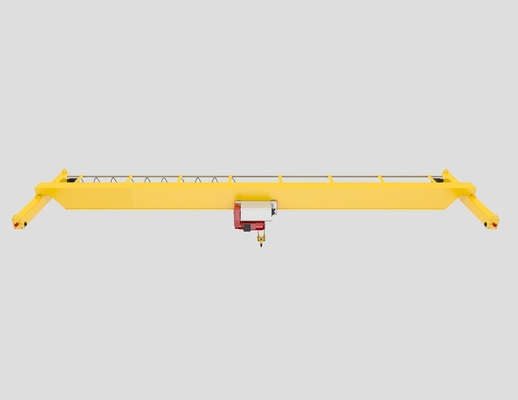

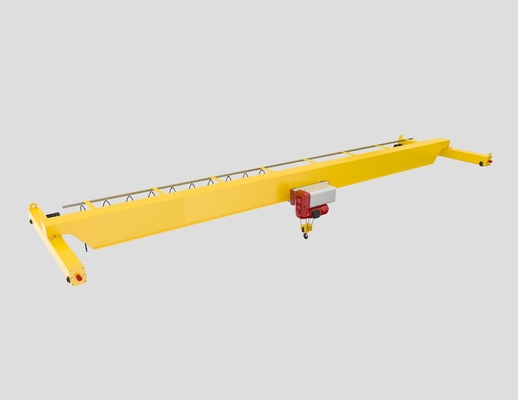

Lifting Speed 8 / 0.8 M / Min Single Beam Bridge Crane For Workshop
Introduction:
Bridge cranes are generally composed of bridge frame (also known as cart), hoisting mechanism, trolley, cart moving mechanism, control room, trolley conductive device (auxiliary slide line), crane main power supply conductive device (main slide line) and other components.
Single girder overhead crane is an important tool and equipment to realize mechanization and automation of production process in modern industrial production and lifting transportation. Therefore, single-girder overhead cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals and logistics turnover and other departments and places.
Technical Parameter:
| Lifting Capacity | T | 1t | 2t | 3t | 5t | 10t | 16t | 20t | ||
| Span | m | 7.5~22.5m | 7.5~31.5 | |||||||
| Speed | Lifting | MD1 hoist | m/min | 8/0.8 (7/0.7) | 3.5/0.35 | |||||
| CD1 hoist | 8 (7) | 3.5 | ||||||||
| Traveling of electric hoist | 20 | 20 | ||||||||
| Traveling of crane | 20/30 | 20/30 | ||||||||
| Wheel diameter | Φ270 | Φ370 | ||||||||
| Width of trail | 37~70mm | 37~70mm | ||||||||
| Operational Model | remote control; ground handle | remote control; ground handle | ||||||||
| Working Duty | A3 | |||||||||
| Power Supply | According to your demands | According to your demands | ||||||||
Advantage:
1) The structure is light and easy to install and maintain
2) Reasonable structure and strong bearing capacity
3) Low noise, soft start and stop
4) Safe and reliable operation
5) Low maintenance cost and long service life
Application:
Single-girder bridge cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals and logistics turnover and other departments and places.
