Product Details:
|
| Keywords: | European - Style Single Beam Overhead Cranes | Feature: | Light Weight And Low Headroom |
|---|---|---|---|
| Span: | 5-40m Or On Request | Max. Lifting Height: | 9m,12m,6m |
| Max. Lifting Load: | 10 Ton | Control Method: | Wireless Remote Control,Ground Control |
| Power Source: | 3 Phase 380V 50hz | Application: | Workshop,Warehouse,factory |
| High Light: | 380V 50hz Single Beam Overhead Crane,Single Beam Crane Low Headroom,3 Phase single beam bridge crane |
||

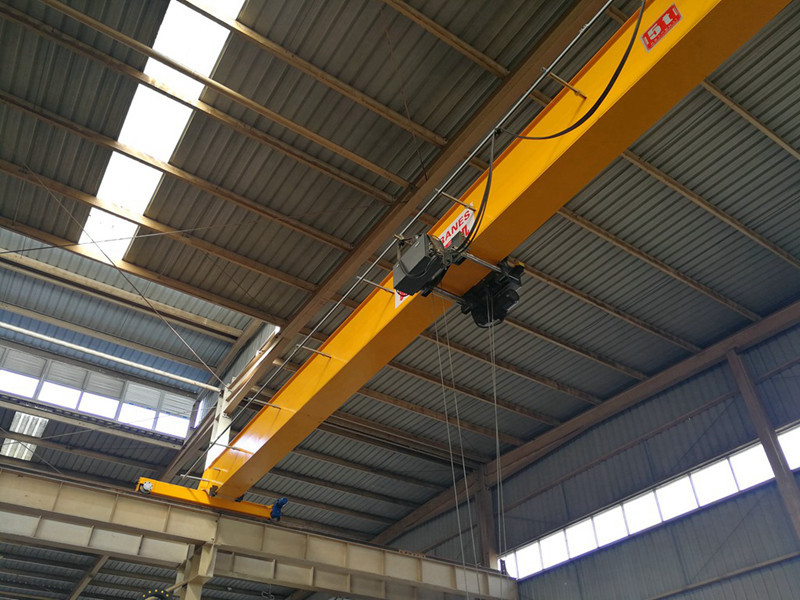

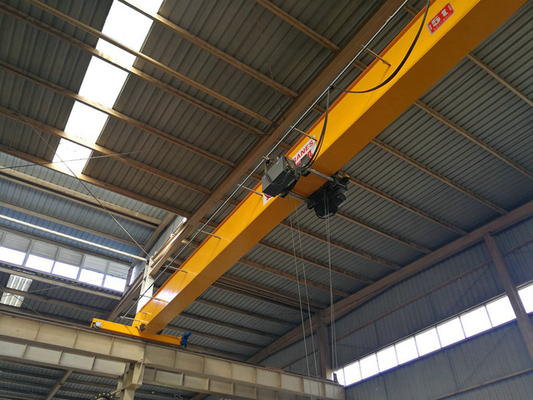

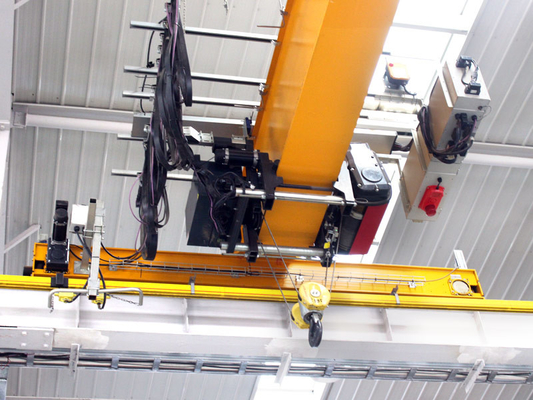

European - Style Single Beam Overhead Cranes Light Weight And Low Headroom
Introduction:
Compared with domestic cranes, the so-called European cranes have no essential difference in transmission form with domestic cranes, but are based on the unique European design concept and advanced manufacturing technology, which makes the whole crane compact and stable in operation.
European cranes attach great importance to the limit lifting on the hook, so that the size of the hook head to the upper edge of the whole machine is infinitely compressed, and even some hooks are compressed to only 1/3 of the domestic crane, thus greatly reducing the hook head to the bottom of the workshop. Mysterious distance. That is to say, in the case of a certain height of the factory, the lifting height is greatly improved, which is the so-called low headroom of the European crane; in addition, due to the small size of the whole machine, the margin is also reduced accordingly. Thereby, the effective working space of the existing workshop is greatly improved.
Technical Parameter:
| Span | m | 7.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 |
| Capacity | t | 1~12.5t | ||||||
| Total weight | kg | 1781~12086 | ||||||
| Trolley weight | kg | 405~740 | ||||||
| Max. Wheel load | kn | 13.5~90.94 | ||||||
| Travel rail | P24~P43 | |||||||
| Lifting speed | m/min | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 |
| Lifting height | m | ≥ 6 | ≥ 6 | ≥ 6 | ≥ 6 | ≥ 6 | ≥ 6 | ≥ 6 |
| Total motor power | kw | 4.31 | 4.31 | 4.31 | 4.31 | 4.67 | 4.67 | 4.67 |
| Crane speed | m/min | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 |
| Trolley speed | m/min | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 |
| Working duty | M5/A5 | |||||||
Features:
Sketch Drawing:
Application:
Single-girder bridge cranes have many uses and are widely used in real life. In many factories, many product manufacturers choose cranes for easy handling, and single-girder overhead cranes are more prominent in terms of assisting and transportation.
In addition to general machinery workshops, single-girder overhead cranes are widely used in petroleum and petrochemical, railway construction, civil aviation airports, hydropower plants, ports, papermaking, building materials, metallurgy and other workshops, warehouses, and material yards.
