Product Details:
|
| Keywords: | Double Girder Overhead Crane | Span: | 10.5-31.5m |
|---|---|---|---|
| Feature: | Bridge Crane | Max. Lifting Height: | 9m,12m,6m |
| Max. Lifting Load: | 10 Ton | Crane Feature: | Easy Operated Girder Bridge Crane |
| Application: | Workshop,Warehouse,factory | Working Duty: | A5-A7 |
| High Light: | double girder overhead travelling crane,Steel Plant Double Girder crane,steel plant crane Easy Operated |
||
Strong Bearing Capacity Double Girder Overhead Crane Large Span 10.5 -31.5m
Introduction:
The double-girder bridge crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single-girder gantry crane with the same lifting capacity, and the cost is also higher. According to the main beam structure, it can be divided into two forms: box girder and truss. Generally a box-shaped structure is used.
Features:
The double-girder bridge crane is mainly composed of a bridge frame, a cart operating mechanism, a trolley, and electrical equipment. According to the frequency of use, it is divided into three working levels: A5, A6, and A7. The operation of the hook bridge crane is all completed in the driver.
Technical Parameter:
| Cap (t) | 5/ 10 | ||||||||
| Span (m) | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | |
|
Main Dimensions (mm) |
H | 1763/1800 | |||||||
| H1 | 765 | ||||||||
| H2 | 24 | 126 | 226 | 376 | 526 | 676 | 826 | 976 | |
| H3 | 2396 | 2546 | 2646 | 2796 | 2946 | 3096 | 3246 | 3396 | |
| H4 | 71-552 | ||||||||
| K | 1400-2000 | ||||||||
| W | 3400 | 3550 | 5000 | ||||||
| B | 5054 | 5204 | 5948 | ||||||
| b | 230 | ||||||||
| Max. Wheel Load (KN) | 72-152 | ||||||||
| Total Power (KW) | 10-15.5 | ||||||||
| Lifting Height (m) | 16 | ||||||||
| Hoisting Speed (m/min) | 5 | ||||||||
Design advantages:
1. The double-girder bridge crane is the first in the design of honeycomb girder, which has the characteristics of light weight, large load and strong wind resistance.
2. The unique steel pin connection is not only firm and reliable, but also the assembly time is short.
3. Flexible rod outriggers can be disassembled into a single piece for construction site steering, which is convenient for transportation.
4. The smallest installed capacity solves the difficulty of using electricity in field construction.
Application:
Double girder overhead crane is an important tool and equipment to realize mechanization and automation of production process in modern industrial production and lifting and transportation. Therefore, double-girder bridge cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals and logistics turnover and other departments and places.

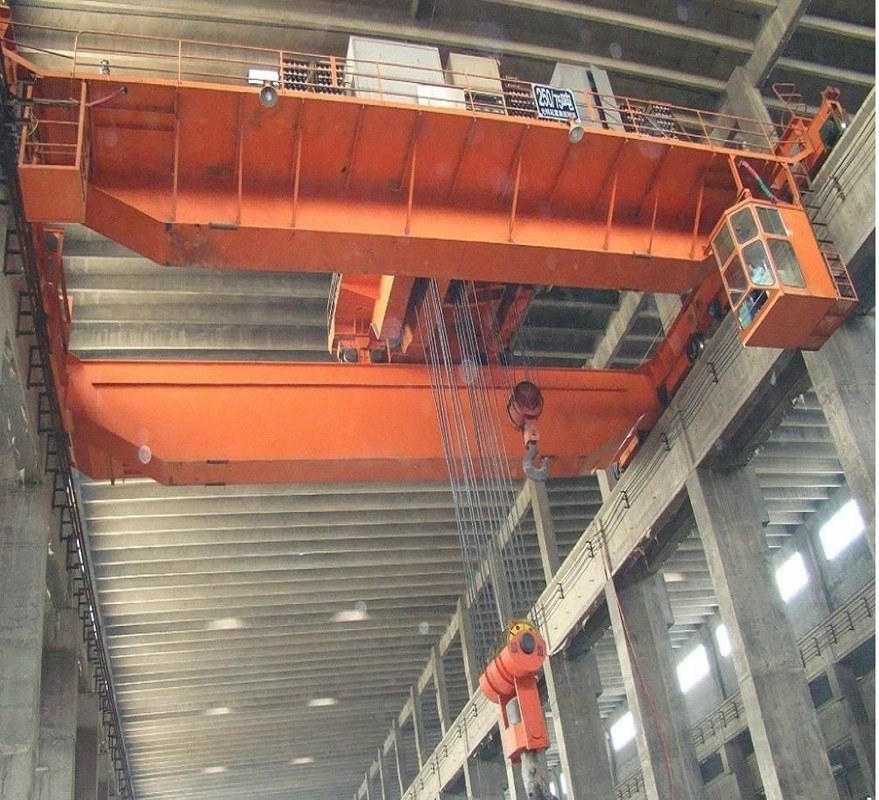

Photos:
