Port Terminals Heavy Duty Double Box Girder Crane Span 10.5-31.5m

Port Terminals Heavy Duty Double Box Girder Crane Span 10.5-31.5m
Port Terminals Heavy Duty Double Box Girder Crane Span 10.5-31.5m Port Terminals Heavy Duty Double Box Girder Crane Span 10.5-31.5m

Large Image :  Port Terminals Heavy Duty Double Box Girder Crane Span 10.5-31.5m

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 45 workdays
Payment Terms: L/C, T/T
Supply Ability: 500 sets per year

Port Terminals Heavy Duty Double Box Girder Crane Span 10.5-31.5m

Description
Keywords: Double Girder Overhead Crane Span: 10.5-31.5m
Feature: Bridge Crane Max. Lifting Height: 9m,12m,6m
Max. Lifting Load: 10 Ton Main Girder Structure: Box Girder
Application: Workshop,Warehouse,factory Working Duty: A5-A7 Heavy Duty
High Light:

Heavy Duty Double Box Girder Crane

,

Box Girder Crane Span 10.5m

,

Port Terminals 10T overhead crane

Strong Bearing Capacity Double Girder Overhead Crane Large Span 10.5 -31.5m



Introduction:



The double-girder overhead crane is composed of straight rail, crane main beam, lifting trolley, power transmission system and electrical control system, and is especially suitable for material conveying in the plane range with large suspension and large lifting capacity.



The double-girder bridge crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single-girder gantry crane with the same lifting capacity, and the cost is also higher.



Technical Parameter:



Port Terminals Heavy Duty Double Box Girder Crane Span 10.5-31.5m 0

Cap (t) 5/ 10
Span (m) 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5

Main

Dimensions

(mm)

H 1763/1800
H1 765
H2 24 126 226 376 526 676 826 976
H3 2396 2546 2646 2796 2946 3096 3246 3396
H4 71-552
K 1400-2000
W 3400 3550 5000
B 5054 5204 5948
b 230
Max. Wheel Load (KN) 72-152
Total Power (KW) 10-15.5
Lifting Height (m) 16
Hoisting Speed (m/min) 5



The difference between single-girder and double-girder top-travel cranes is:



  • The single-girder crane has only one bridge, and the trolley runs or travels on the lower flange of the bridge.
  • Double girder cranes have two bridges, and the trolleys run on rails, which are usually attached to the top of the crane beams.



Application:



Double girder overhead crane is an important tool and equipment to realize mechanization and automation of production process in modern industrial production and lifting and transportation. Therefore, double-girder bridge cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals and logistics turnover and other departments and places.



Photos:

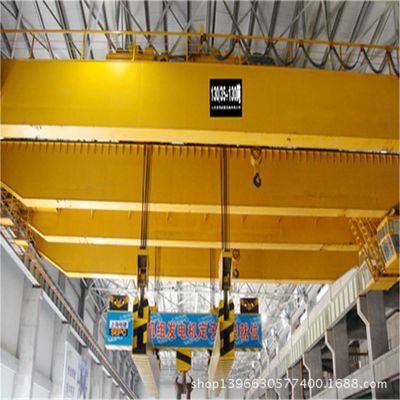

Port Terminals Heavy Duty Double Box Girder Crane Span 10.5-31.5m 1
