Product Details:
|
| Keywords: | Double Girder Overhead Crane | Span: | 10.5-31.5m |
|---|---|---|---|
| Feature: | Large Lifting Capacity | Max. Lifting Height: | 9m,12m,6m |
| Max. Lifting Load: | 10 Ton | Main Girder Structure: | Box Girder |
| Application: | Workshop,Warehouse,factory | Working Duty: | A5-A7 Heavy Duty |
| High Light: | Double Girder 10 Ton Overhead Crane,Large Capacity 10 Ton Overhead Crane,Logistics Turnover DG EOT Crane |
||
Firm And Reliable Double Girder Overhead Crane With Large Lifting Capacity
Introduction:
The double-girder overhead crane is composed of straight rail, crane main beam, lifting trolley, power transmission system and electrical control system, and is especially suitable for material conveying in the plane range with large suspension and large lifting capacity.
The double-girder bridge crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single-girder gantry crane with the same lifting capacity, and the cost is also higher.
Technical Parameter:
| Cap (t) | 5/ 10 | ||||||||
| Span (m) | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | |
|
Main Dimensions (mm) |
H | 1763/1800 | |||||||
| H1 | 765 | ||||||||
| H2 | 24 | 126 | 226 | 376 | 526 | 676 | 826 | 976 | |
| H3 | 2396 | 2546 | 2646 | 2796 | 2946 | 3096 | 3246 | 3396 | |
| H4 | 71-552 | ||||||||
| K | 1400-2000 | ||||||||
| W | 3400 | 3550 | 5000 | ||||||
| B | 5054 | 5204 | 5948 | ||||||
| b | 230 | ||||||||
| Max. Wheel Load (KN) | 72-152 | ||||||||
| Total Power (KW) | 10-15.5 | ||||||||
| Lifting Height (m) | 16 | ||||||||
| Hoisting Speed (m/min) | 5 | ||||||||
The difference between single girder and double girder overhead crane:
1. The two are structurally different
Generally, single-girder bridge cranes are relatively simple in structure, light in weight, and relatively simple in installation, daily maintenance, and assembly and disassembly. However, the double-girder bridge crane is relatively complex in structure and has a large weight, and is relatively complicated in installation and daily maintenance and repair.
2. Different production costs
Single girder overhead cranes are shorter in span and consume less construction materials, so they cost less. The double-girder bridge crane has a larger span, more consumables, and higher technical content, so the production cost is higher.
3. Differences in the way of operation
In terms of operation mode, single-girder cranes are generally operated on the ground, which can be operated by handle and remote control, while double-girder bridge cranes require workers to control them during operation.
4. Mechanical properties
In terms of mechanical performance, the stability of single-girder overhead cranes is relatively low, the rated lifting capacity is relatively small, and the work level is relatively low. The double-girder overhead crane has relatively high stability, heavier rated lifting capacity, and relatively high working level.
5. The working environment of the two is different
Generally, single-girder bridge cranes are suitable for workplaces with short spans, relatively light lifting weights and relatively small construction site space. The double-girder bridge crane is suitable for sites with long spans, relatively heavy lifting capacity and wide construction site space.
Application:
Double girder overhead crane is an important tool and equipment to realize mechanization and automation of production process in modern industrial production and lifting and transportation. Therefore, double-girder bridge cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals and logistics turnover and other departments and places.

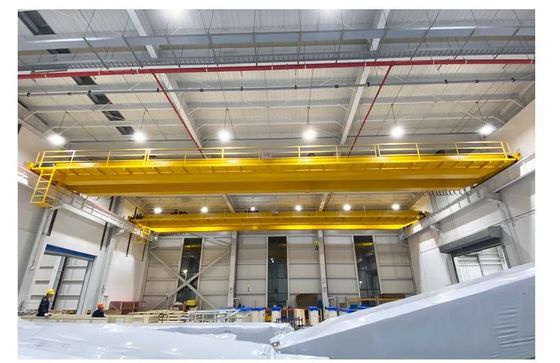

Photos:
