10-15.5KW Industrial Box Girder Crane 5T Overhead Crane Double Girder

10-15.5KW Industrial Box Girder Crane 5T Overhead Crane Double Girder
10-15.5KW Industrial Box Girder Crane 5T Overhead Crane Double Girder 10-15.5KW Industrial Box Girder Crane 5T Overhead Crane Double Girder

Large Image :  10-15.5KW Industrial Box Girder Crane 5T Overhead Crane Double Girder

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 45 workdays
Payment Terms: L/C, T/T
Supply Ability: 500 sets per year

10-15.5KW Industrial Box Girder Crane 5T Overhead Crane Double Girder

Description
Keywords: Bridge Cranes Double Beam Span: 15M
Feature: Large Load And Strong Wind Resistance Max. Lifting Height: 9m,12m,6m
Capacity: 5 Ton Girder Structure: Box Girder
Working Duty: A5-A7 Application: Lifting And Transportation In Industrial Production
High Light:

15.5KW Industrial Box Girder Crane

,

15.5KW Industrial Box Girder Cranes

,

5T Overhead Crane Double Girder 15.5KW

Box Girder Structure 5t Overhead Crane Double Girder For Lifting And Transportation In Industrial Production



Introduction:



The double-girder overhead crane is composed of straight rail, crane main beam, lifting trolley, power transmission system and electrical control system, and is especially suitable for material conveying in the plane range with large suspension and large lifting capacity.

The double-girder bridge crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single-girder gantry crane with the same lifting capacity, and the cost is also higher. According to the main beam structure, it can be divided into two forms: box girder and truss. Generally a box-shaped structure is used.



Technical Parameter:



10-15.5KW Industrial Box Girder Crane 5T Overhead Crane Double Girder 0

Cap (t) 5/ 10
Span (m) 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5

Main

Dimensions

(mm)

H 1763/1800
H1 765
H2 24 126 226 376 526 676 826 976
H3 2396 2546 2646 2796 2946 3096 3246 3396
H4 71-552
K 1400-2000
W 3400 3550 5000
B 5054 5204 5948
b 230
Max. Wheel Load (KN) 72-152
Total Power (KW) 10-15.5
Lifting Height (m) 16
Hoisting Speed (m/min) 5



Product Features:



  • Minimum IP55 for electrical enclosure
  • All crane motors are equipped on the overhead crane with insulation class F and Temperature Rise Class B to provide a longer operational life span
  • Electronic overload protection c/w warning horn.
  • Noise level below 85 dB(A) at full load
  • Two speed control via pole changing for the hoisting motion, inverter control for trolley and bridge motion for smooth and precise operation.
  • Thermal protection for pole-changing and 3 PTC thermistors for inverter drive.
  • Crane rake with asbestos-free lining which activates automatically in case of power failure.



Application:



Double girder overhead crane is an important tool and equipment to realize mechanization and automation of production process in modern industrial production and lifting and transportation. Therefore, double-girder overhead cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals and logistics turnover departments and places.



Photos:

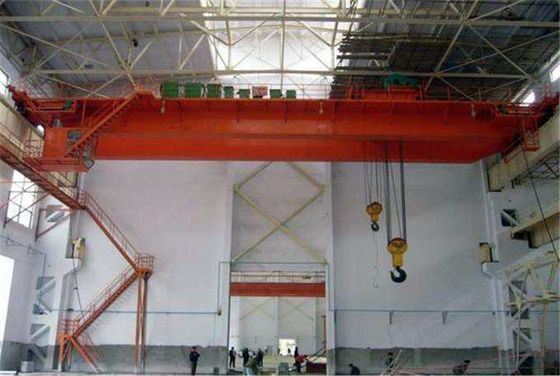

10-15.5KW Industrial Box Girder Crane 5T Overhead Crane Double Girder 1
