Fast Smooth Loading Steel Mill Overhead Cranes 16/5T Double Girder Bridge Crane

Fast Smooth Loading Steel Mill Overhead Cranes 16/5T Double Girder Bridge Crane
Fast Smooth Loading Steel Mill Overhead Cranes 16/5T Double Girder Bridge Crane Fast Smooth Loading Steel Mill Overhead Cranes 16/5T Double Girder Bridge Crane

Large Image :  Fast Smooth Loading Steel Mill Overhead Cranes 16/5T Double Girder Bridge Crane

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 45 workdays
Payment Terms: L/C, T/T
Supply Ability: 500 sets per year

Fast Smooth Loading Steel Mill Overhead Cranes 16/5T Double Girder Bridge Crane

Description
Keywords: European Style Double Girder Overhead Crane Advantage: Fast And Smooth Loading
Span: 15M Feature: Make Full Use Of Plant Space
Max. Lifting Height: 9m,12m,6m Capacity: 5 Ton ,16/5 Ton
Working Duty: A5-A7 Application: Steel Industry
High Light:

Fast Smooth Steel Mill Overhead Cranes

,

Steel Mill Overhead Cranes 16/5T

,

16/5T Steel Mill Overhead Cranes

Fast And Smooth Loading European Standard Double Girder Overhead Crane For Steel Industry



Introduction:



The double-girder European crane has a compact design, light weight, small wheel pressure, and even load distribution, which can save customers considerable investment and greatly improve the effective working space. The double-girder European crane is not only safe and reliable, but also ergonomically designed, easy to operate, safe and comfortable, and makes material transportation more convenient and efficient. There are many dosing options for customers to choose from, such as hoisting frequency conversion, hoist double, remote control, etc., to meet the needs of various working conditions or logistics transportation.



Technical Parameter:



Technical Specifications
Lifting Capacity Span Lifting Work Duty Main Lifting Vice Lifting Trolley Traveling Crane Traveling Track
Height Speed Speed Speed Speed

t m m   m/min m/min m/min m/min
5 13.5~19.5 18 A5 0.84~8.4   3.4~34 5.1~51 38kg
22.5~31.5 5~50
5 13.5~19.5 18 A5 0.78~7.8   3~30 5~50 38kg
22.5~31.5 5.2~52
16/5 13.5~19.5 18/18 A5 0.76~7.6 0.84~8.4 3.5~35 5.1~51 43kg
22.5~31.5 5.2~52
20/5 13.5~19.5 18/18 A5 0.6~6 0.84~8.4 3.5~35 5.1~51 43kg
22.5~31.5 5.2~52
32/5 13.5~19.5 18/18 A5 0.52~5.2 0.84~8.4 3.1~31 5.1~51 43kg
22.5~31.5 5.2~52
Oct-50 13.5~19.5 18/18 A5 0.43~3.9 0.78~7.8 3.6~36 4.8~48 43kg
22.5~31.5 5.4~54
Notes: Customizable

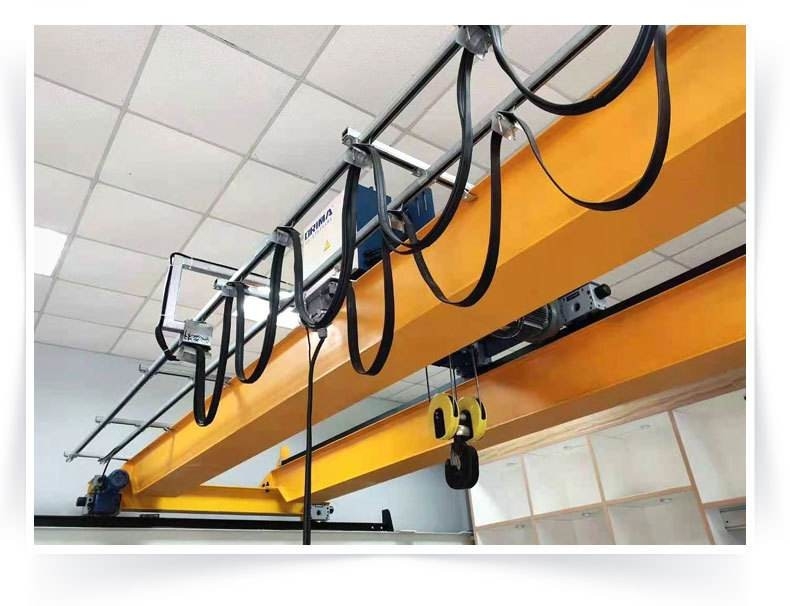

Fast Smooth Loading Steel Mill Overhead Cranes 16/5T Double Girder Bridge Crane 0

The difference between single girder and double girder cranes:



1. Differences in the working environment
Generally speaking, single girder cranes are usually used in places with short spans, small lifting capacity and small working space. Double girder overhead cranes are used in places with large span, large lifting capacity and large working space. Compared with the two, the European double-girder crane works at a higher level.



2. the difference in crane structure
Single-girder bridge cranes are lighter in weight, simpler in structure, and easier to install, disassemble and maintain, while double-girder bridge cranes are heavier in weight, more complex in structure, and require higher assembly, disassembly and maintenance.



3. The difference between the manufacturing cost of single-girder cranes and double-girder cranes.
Due to the small body of the single-girder bridge crane, the material consumption is small, and the manufacturing cost is not high.



4. the mechanical properties of the single-girder crane and the double-girder crane are different.



Application:



Double girder overhead crane is an important tool and equipment to realize mechanization and automation of production process in modern industrial production and lifting and transportation. Therefore, double-girder overhead cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals and logistics turnover departments and places.

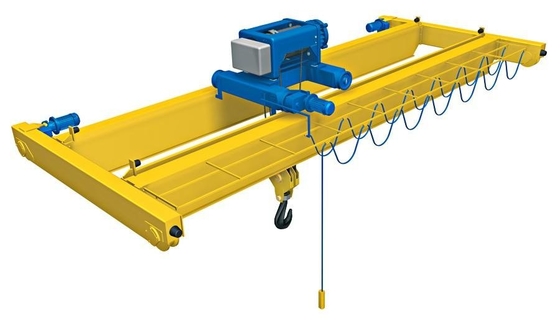

Fast Smooth Loading Steel Mill Overhead Cranes 16/5T Double Girder Bridge Crane 1
