Product Details:
|
| Keywords: | Double Girder Gantry Crane | Span: | 5-40m Or On Request |
|---|---|---|---|
| Certification: | CE | Max. Lifting Height: | 9m,12m,6m |
| Lifting Load: | 16 / 3.2T | Power Source: | 3 Phase 380V 50hz Or Accord Your Requirements |
| Crane Feature: | Easy Operated Girder Bridge Crane | Application: | Container Handling In Ports |
| High Light: | Cantilever Container Handling Gantry Crane,32T Container Handling Gantry Crane,32Ton Double Girder Bridge Crane |
||

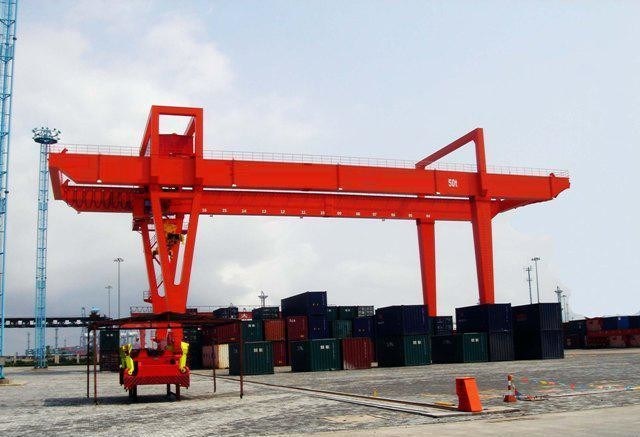

Cantilever Double Girder Gantry Crane For Container Handling In Ports
Introduction:
The common lifting weight is 10-50t, and the working environment temperature is in the range of -20-+40℃. There are two working levels, A5 and A6. The trolley of this crane adopts flexible cable to conduct electricity, and the trolley is powered by sliding contact or cable reel. There are three modes of operation: ground control, operation room control and remote control for users to choose.
The standard operation mode is room control, and all the mechanisms are operated in the driver's cab and are equipped with rain-proof equipment. It is suitable for loading, unloading and handling of various materials in open-air warehouses, cargo (material) yards, railway stations, and ports. Features of this crane: The bridge frame adopts box-shaped double-beam welding mechanism, the crane runs smoothly, and has good wind resistance, and each mechanism is equipped with safety protection devices.
Technical Parameter:
| Load Capacity (ton) | Span /Rail Gauge (m) | Max. Lifting height (m) | Duty Class |
| 10 | 15~35 | 3~25 | A5 or A3 |
| 16 | 15~35 | 3~25 | A5 or A3 |
| 20 | 15~35 | 3~25 | A5 or A3 |
| 32 | 15~35 | 3~25 | A5 or A3 |
| 36 | 15~35 | 3~25 | A5 or A3 |
| 40 | 15~35 | 3~25 | A5 or A3 |
| 50 | 15~35 | 3~25 | A5 or A3 |
| Customizable | Customizable | Customizable | Customizable |
Product Configuration:
1.Double box beam with steel legs moving through the ground beam as crane travelling system
2.The camber of main beam will be designed as Span*1-1.4/1000.
3.Steel Material: Q235 or Q345
4.Shot-blasting Sa2.5 for main girder and supporting beam
5.Epoxy zinc rich high quality painting.
6.Electrification and outfitting
7.Brand: CHINT SIEMENS Schneider
8.Conductor power supply: Cable Reel or busbar.
How to choose:
1. Selection of gantry crane
2. Span and cantilever length
3. The principle of determining the wheelbase
4. The gantry crane spacing size is determined
Photo:
