Product Details:
|
| Product Name: | Electric Transfer Cart | Keywords: | Battery Powered Transfer Cart |
|---|---|---|---|
| Load Capapcity: | 3t-50t | Main Material: | Steel, Electronics |
| Color: | Customized | Type: | Railless, Battery Powered |
| Working Time: | 3-6hours | Charging Time: | 7-8hours |
| Work Speed: | 0-20m/min | Control: | Remote Control |
| Guaranteed: | 1 Year | Certificate: | CE, ISO9001:2015 |
| Main Parts: | Motor, Wheel,battery,electrical Control Box | ||
| High Light: | flexible turning flat transfer cart,flexible turning warehouse transfer trolley,Warehouse Transfer Trolley 5ton |
||

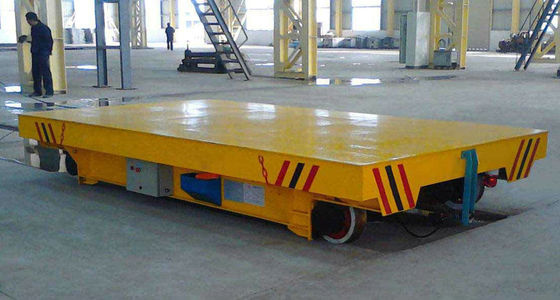

Industrial Heavy load railless handling equipment battery powered flexible turning flat transfer cart warehouse trolley cart 5ton
| product name | material transfer trolley cart |
| capacity | 5ton or customized |
| main material | steel, battery, electronics |
| size | 2000*3000*300mm or customized |
| powered by | lithium battery or lead acid battery |
| working time | 5-6 hours |
| charging time | 7-8 hours |
| control | remote control,forward, back, left ,right, emergency stop. |
| main parts | motor, 4 wheels, battery, electrical control box |
| Wheel | 4,Polyurethane or rubber |
| IP grade | IP 44 or IP54(outdoor) |
| type | railless. with rail can be customized |
| guaranteed | 1 year |
| color | customized. |
| certificate | CE& ISO9001:2015 |
The advantages of lithium battery transfer cart
1. Motor drive system
2. It adopts the electromagnetic brake motor and the planetary reducer as the overall driving scheme, featuring high precision, large torque, high transmission ratio, no noise and no maintenance.
3.Frequency conversion technology
Using frequency conversion technology, we can save about 20%-40% of the power cost budget, from slow to fast operation mode, greatly reducing the impact on the equipment and increasing the service life of the entire system.
4.Modularization
All accessories are modular and do not require soldering, minimizing the additional cost of replacing the accessories.
Transfer cart frame
It is a box-type structure, Q235-B cast steel is refined, it is not easy to be deformed, and the appearance is beautiful and durable.
,
Infrared induction
When the car encounters people or obstacles during the running, it will be detected in advance and stop running.
Remote control Our transfer car comes standard with wireless remote control and wired handle. Wireless remote control is more convenient. Can be controlled from a distance. Dual remote control configuration, when the wireless remote control is damaged, you can also use the wired handle, which will not delay production.
Custom production design
1. Professional designers can provide reasonable solutions according to your actual needs; We’ve supplied 5000+ cases to customers all over the world.
2. 2. Customizable size, load, stop, PLC automation, table lift, explosion protection, high temperature resistance, etc.
3. 3. Battery power supply, low-voltage rail power supply, cable power supply, sliding line power supply, etc.
