Double Cantilever 5 - 40m 20t Double Beam Gantry Crane U Type

Double Cantilever 5 - 40m 20t Double Beam Gantry Crane U Type
Double Cantilever 5 - 40m 20t Double Beam Gantry Crane U Type Double Cantilever 5 - 40m 20t Double Beam Gantry Crane U Type

Large Image :  Double Cantilever 5 - 40m 20t Double Beam Gantry Crane U Type

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 45 workdays
Payment Terms: L/C, T/T
Supply Ability: 500 sets per year

Double Cantilever 5 - 40m 20t Double Beam Gantry Crane U Type

Description
Keywords: Dual - Beam Gantry Crane Lifting Load: 20T
Main Beam: Box Type Type: U Type
Span: 5-40m Or On Request Certification: CE
Max. Lifting Height: 9m,12m,6m Application: For Outdoor Cargo Yards

Double Cantilever 5 - 40m 20t Double Beam Gantry Crane U Type



Double girder gantry crane structure:



The electric double-girder gantry crane is composed of cart running mechanism, lower beam, outriggers, driver's cab, main beam, trolley running mechanism, hoisting mechanism, escalator, electrical appliances and other components:


1. Cart running mechanism
It is mainly composed of a lower beam and a trolley, of which the trolley is composed of a driving wheel group and a driven wheel group. The running mechanism includes a motor, a reducer, a gear, and a wheel group.
2. Outriggers
The section steel is used as the material, and then welded into a cage-shaped mechanism, the lower end is connected with the lower beam, and the upper end is connected with the main beam bolts through flanges.
3. Cab
The skeleton is made of profiled steel, the outer shell is welded on the skeleton with thin steel plates, the driver's cab is closed with broken lines, and the electrical appliances, power distribution cabinets and lines of the operating mechanism are generally located in the driver's cab.
4. Main beam
The section steel and the steel plate are welded, generally welded into a truss triangle. On the main beam, there are also trolley running rails.
5. Trolley running mechanism
The main components are similar to the running mechanism of the cart. The motor is driven by the reducer, and the pinion on the reducer is then transmitted to the large gear, so that the cart can travel back and forth.
6. Lifting mechanism
It is installed on the trolley frame, and the lifting movement is realized through the hoist and the matching fixed pulley, movable pulley or hook.



Technical Parameter:



Lifting Weight 10 16 20/10 32/10 36/16 50/10
Span (m) 18/22/26/30/35 18/22 30 18/22/26/30/35 22/26 22/26/30/35 32
Lifting Height Primary 11.5 10.5 12 10.5 11.5 11.5 12
Secondary     11 12 12 13
Working Duty   A5 A5~A6 A5 A5~A6 A5~A6
Speed Lift Primary (m/min) 18.4 12.3 9.2 10.4 10.4 6
Secondary     13.2 13.2 12.3 18
Travel Handcart 43.8 44.5 44.5 41.9 51 38.13
Cart 54.6 48.4 51.2 49.1 51.2 48 51.2 51.2 51.2 43.8
Steel Track (Kg/m) 43 50



Double girder gantry crane notice:



The workplace of the gantry crane is usually in the open air environment such as seaside wharf, next to the railway or other large factories of heavy industry, and the temperature in the open environment changes drastically. During the working process, factors such as vibration and shock are unfavorable to it. More seriously, when the capacity of the power supply transformer becomes smaller and the cross-section of the power supply cable is reduced, it often causes instantaneous voltage shortage.​​



Selection of gantry crane:



1. Double girder gantry crane Lifting capacity.

2. Span length.(rail center to rail center)

3. Lifting height.(hook center to ground)

Double girder gantry crane Photo:

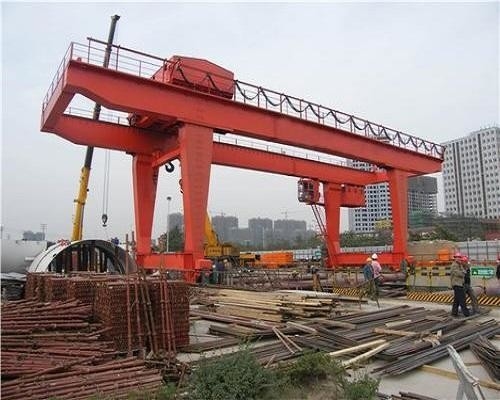

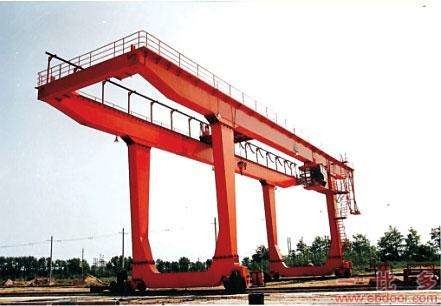

Double Cantilever 5 - 40m 20t Double Beam Gantry Crane U Type 0
