50t MG Type Warehouse Gantry Crane Double Beam With Hoist

50t MG Type Warehouse Gantry Crane Double Beam With Hoist
50t MG Type Warehouse Gantry Crane Double Beam With Hoist 50t MG Type Warehouse Gantry Crane Double Beam With Hoist

Large Image :  50t MG Type Warehouse Gantry Crane Double Beam With Hoist

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 45 workdays
Payment Terms: L/C, T/T
Supply Ability: 500 sets per year

50t MG Type Warehouse Gantry Crane Double Beam With Hoist

Description
Keywords: Warehouse Gantry Crane Crane Feature: RMG / Rail Mounted Gantry Crane
Span: 5-40m Or On Request Certification: CE
Max. Lifting Height: 9m,12m,6m Lifting Load: 50T
Power Source: 3 Phase 380V 50hz Or Accord Your Requirements Application: Port Container Handling

50t MG Type Warehouse Gantry Crane Double Beam With Hoist



Notice:



The workplace of the gantry crane is usually in the open air environment such as seaside wharf, next to the railway or other large factories of heavy industry, and the temperature in the open environment changes drastically. During the working process, factors such as vibration and shock are unfavorable to it. More seriously, when the capacity of the power supply transformer becomes smaller and the cross-section of the power supply cable is reduced, it often causes instantaneous voltage shortage.​​



Technical Parameter:



Lifting Capacity t 5 10 16/3.2 20/5 32/5 50/10
Working Duty ISO A3-A8
Span m 7-35, customized
Lifting Height Main hook m 10 11 10 11 10 11 10 11 10 11 10 12
Aux. hook 10.275,11.275 10.446,11.446 10.73 11.73 10.918 12.918
Speed Lifting Main m/min 11.3 8.5 7.9 7.2 7.5 5.9
Aux. 14.6 15.4 15.4 10.4
Trolley traveling 37.3 35.6 36.6 37 36
Crane traveling 37.3 39.7 40.1 39.7 39.7 37.3 39.7 39.4 38.5
Recommended Tail   43kg/m 43kg/m or QU70
Power Supply   3-Phase 380V 50HZ, or as clients' requirement


Features:



Electrical control: Set up a synchronizing device to keep the speed synchronization of the running mechanisms on both sides through an electrical control system
Excellent performance: Equipped with a mature electrical control system to achieve stabilization and positioning, stable operation
Novel structure: the door-shaped frame is adopted, the structure is stable, and a variety of different things can be loaded and unloaded smoothly.
Time-saving and labor-saving: high site utilization, large operating range, large adaptability, and convenient maintenance



How to choose:

1. Selection of gantry crane
2. Span and cantilever length
3. The principle of determining the wheelbase
4. The gantry crane spacing size is determined

Photo:

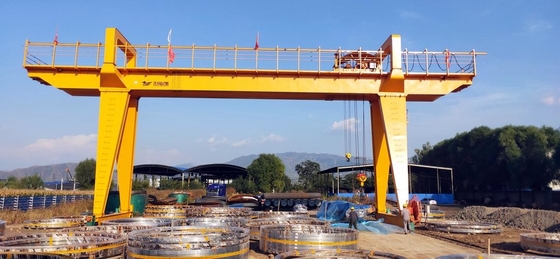

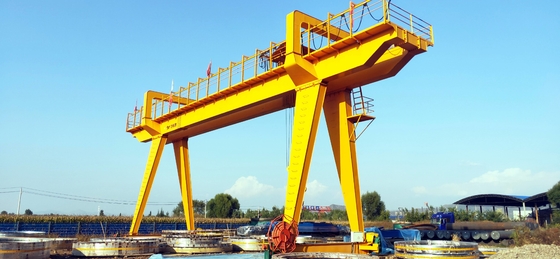

50t MG Type Warehouse Gantry Crane Double Beam With Hoist 0
