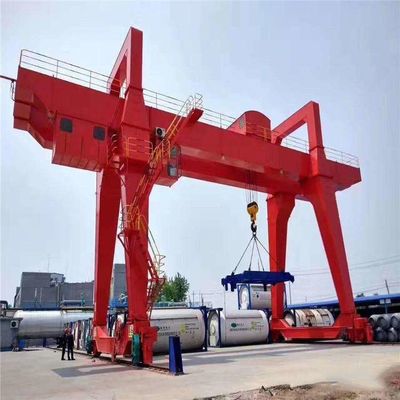

U Type Warehouse Large Gantry Crane A5 - A7 Double Girder 16/3.2T

U Type Warehouse Large Gantry Crane A5 - A7 Double Girder 16/3.2T
U Type Warehouse Large Gantry Crane A5 - A7 Double Girder 16/3.2T U Type Warehouse Large Gantry Crane A5 - A7 Double Girder 16/3.2T

Large Image :  U Type Warehouse Large Gantry Crane A5 - A7 Double Girder 16/3.2T

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 45 workdays
Payment Terms: L/C, T/T
Supply Ability: 500 sets per year

U Type Warehouse Large Gantry Crane A5 - A7 Double Girder 16/3.2T

Description
Keywords: Warehouse Large Gantry Crane Span: 5-40m Or On Request
Certification: CE Max. Lifting Height: 9m,12m,6m
Lifting Load: 16 / 3.2T Power Source: 3 Phase 380V 50hz Or Accord Your Requirements
Crane Feature: Easy Operated Girder Bridge Crane Application: Warehouse Loading And Unloading Materials
High Light:

Warehouse Large Gantry Crane

,

U Type Large Gantry Crane 3.2T

,

A7 Double Girder Gantry Crane

U Type Warehouse Large Gantry Crane A5 - A7 Double Girder 16/3.2T


Double Girder Gantry Crane Introduction:


U type double girder gantry crane is applied to general materials handing service in outdoor freight yard and along railway line , such as loading,unloading ,lifting and transferring work .As there is more space under legs of gantry crane , it’s fit for conveying larger products ,saddle support isn’t needed for U type gantry crane , So overall height of crane is reduced given certain lift height.



The U type double main girder hook gantry crane has two U-shaped outriggers.The crane is suitable for railway freight yards, ports, open-air warehouses, container transfer stations, etc. with large spans and frequent loading and unloading operations. The crane adopts a U-shaped gantry, and its over-leg clearance is large (nearly 7m), which is suitable for loading and unloading of long and heavy goods and containers. Due to the structural characteristics of the U-shaped door crane, the saddle frame is omitted, and the height of the whole machine is reduced under the condition of a certain lifting height.



U-shaped double main girder hook gantry crane has a rated lifting capacity of 5~500 tons; both sides of the crane can be equipped with cantilevers; large workload A5~A7 (ISO); special industry hooks can be grab buckets, magnets, lifting beams; environment Working temperature -40~50 degrees.


Double Girder Gantry Crane Technical Parameter:


Lifting Weight 10 16 20/10 32/10 36/16 50/10
Span (m) 18/22/26/30/35 18/22 30 18/22/26/30/35 22/26 22/26/30/35 32
Lifting Height Primary 11.5 10.5 12 10.5 11.5 11.5 12
Secondary     11 12 12 13
Working Duty   A5 A5~A6 A5 A5~A6 A5~A6
Speed Lift Primary (m/min) 18.4 12.3 9.2 10.4 10.4 6
Secondary     13.2 13.2 12.3 18
Travel Handcart 43.8 44.5 44.5 41.9 51 38.13
Cart 54.6 48.4 51.2 49.1 51.2 48 51.2 51.2 51.2 43.8
Steel Track (Kg/m) 43 50

U Type Warehouse Large Gantry Crane A5 - A7 Double Girder 16/3.2T 0


Advantages:



  •  Electrical control: Set up a synchronizing device to keep the speed synchronization of the running mechanisms on both sides through an electrical control system
  • Excellent performance: equipped with a mature electrical control system to achieve anti-roll positioning and stable operation
  • Novel structure: the door-shaped frame is adopted, the structure is stable, and a variety of different things can be loaded and unloaded smoothly.
  • Time-saving and labor-saving: high site utilization, large operating range, large adaptability, and convenient maintenance


How to choose:

1. Selection of gantry crane
2. Span and cantilever length
3. The principle of determining the wheelbase
4. The gantry crane spacing size is determined
U Type Warehouse Large Gantry Crane A5 - A7 Double Girder 16/3.2T 1

U Type Warehouse Large Gantry Crane A5 - A7 Double Girder 16/3.2T 2

If you want to order this gantry crane, Pls tell me the details as follows:



1. The Max. lifting capacity? (Ton)
2. The span of gantry crane?(the distance of rail to rail center)
3. Do you need cantilevers at two beam ends? if it is, Pls mention the length per side.
4. The Max. lifting height of hook? (or total height of crane)
5. What type meterial will you to lift?
6. The power source standard?(380V, 50Hz, 3phase or others)
