Product Details:
|
| Keywords: | Overhead Crane Double Girder | Capacity: | 10 Ton |
|---|---|---|---|
| Span: | 5-20m ,customized | Feature: | No Deformation, Full Use Of Space, High Efficiency |
| Advantage: | Safe, Stable, Easy Maintainence. | Max. Lifting Height: | 5-15meters, Customized. |
| Working Duty: | A3, A1-A8 Customized | Certificate: | CE& ISO9001:2015 |
| Guarranty: | 1 Year | Color: | Red/yellow/blue, Customized |
| Logo: | Accept, Please Show Us Panton Number | Material: | Steel Plate |
| Main Process: | Welding | After-sales Service: | Free Parts Will Be Sent During Guaranty If Quality Issue Occurs, Or Technical Support |
| High Light: | ODM Overhead Crane Double Girder,Overhead Crane Double Girder 50t |
||

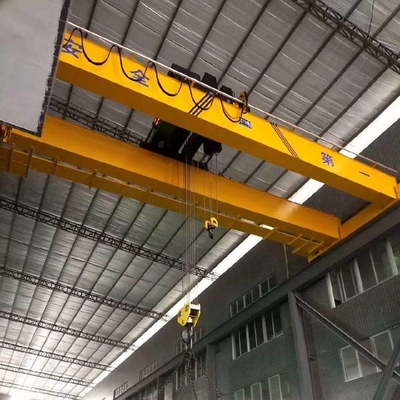

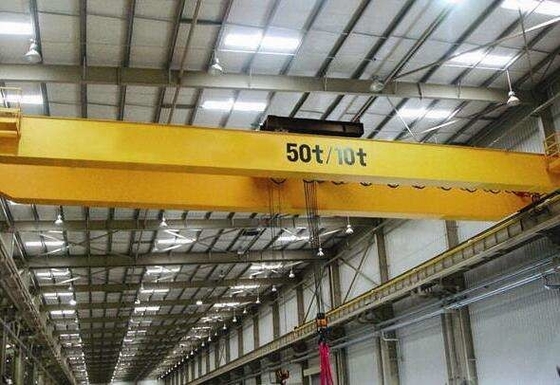

European standard overhead crane double Girder 10T High Lifting Speed with electric hoist facotry plant bridge crane
Introduction:

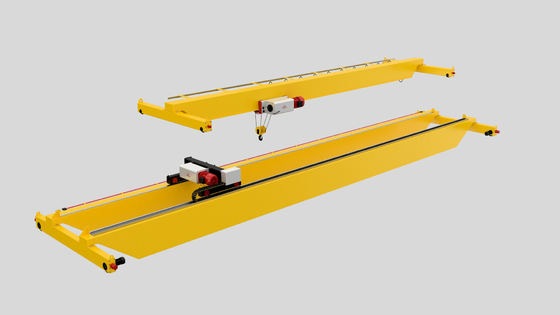

Double beam bridge crane is also known as double beam crane and crown block. Its bridge runs longitudinally along the track laid on the viaducts on both sides, and the lifting trolley runs transversely along the track laid on the bridge, forming a rectangular working range, which can make full use of the space under the bridge to lift materials without being hindered by ground equipment.
Advantages:
1. Reasonable structure and beautiful appearance
High site utilization, large operation range, wide adaptability, time-saving and labor saving, low noise
2. Excellent performance and large lifting capacity
Light deadweight, small wheel pressure, simple structure, convenient operation and stable operation performance
3. Simple operation and land saving
The height above the track surface is small, occupying small space, saving space

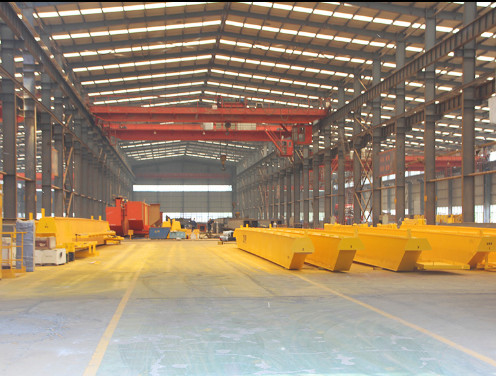

4. Own factory, supporting installation
Customized production according to customer requirements, fast delivery, support for site measurement, installation and after-sales warranty
Technical Parameter:
| Technical Specifications | ||||||||
| Lifting Capacity | Span | Lifting | Work Duty | Main Lifting | Vice Lifting | Trolley Traveling | Crane Traveling | Track |
| Height | Speed | Speed | Speed | Speed | ||||
| t | m | m | m/min | m/min | m/min | m/min | ||
| 5 | 13.5~19.5 | 18 | A5 | 0.84~8.4 | 3.4~34 | 5.1~51 | 38kg | |
| 22.5~31.5 | 5~50 | |||||||
| 5 | 13.5~19.5 | 18 | A5 | 0.78~7.8 | 3~30 | 5~50 | 38kg | |
| 22.5~31.5 | 5.2~52 | |||||||
| 16/5 | 13.5~19.5 | 18/18 | A5 | 0.76~7.6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 | |||||||
| 20/5 | 13.5~19.5 | 18/18 | A5 | 0.6~6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 | |||||||
| 32/5 | 13.5~19.5 | 18/18 | A5 | 0.52~5.2 | 0.84~8.4 | 3.1~31 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 | |||||||
| Oct-50 | 13.5~19.5 | 18/18 | A5 | 0.43~3.9 | 0.78~7.8 | 3.6~36 | 4.8~48 | 43kg |
| 22.5~31.5 | 5.4~54 | |||||||
| Notes: Customizable | ||||||||
Application:
Double girder overhead crane is an important tool and equipment to realize mechanization and automation of production process in modern industrial production and lifting and transportation. Therefore, double-girder overhead cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals and logistics turnover departments and places.
About products: In order to better serve you, please tell us the following data:
1. Bearing capacity
2. Span (track center distance)
3. Lifting height (from the hook center to the ground)
4. Power supply: voltage
5. Working environment: description of lifting cargo, service environment and temperature
6. If the workshop drawings can be provided, it will be a better support.
