Product Details:
|
| Keywords: | Bridge Cranes Double Beam | Span: | 15M |
|---|---|---|---|
| Feature: | Large Load And Strong Wind Resistance | Max. Lifting Height: | 9m,12m,6m |
| Capacity: | 5 Ton | Girder Structure: | Box Girder |
| Working Duty: | A5-A7 | Application: | Lifting And Transportation In Industrial Production |
| High Light: | Electric 5t Overhead Crane,Double Girder 5t Overhead Crane,Box Girder Electric Overhead Crane |
||
Heavy Duty Electric 5t Overhead Crane Double Girder Box Girder
Introduction:
Double girder cranes are generally composed of mechanical, electrical and metal structures. The external appearance of the bridge crane is a single span flat plate bridge with two ends supported on two parallel overhead rails. Double girder cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals, logistics turnover and other departments and places.
Technical Parameter:
| Cap (t) | 5/ 10 | ||||||||
| Span (m) | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | |
|
Main Dimensions (mm) |
H | 1763/1800 | |||||||
| H1 | 765 | ||||||||
| H2 | 24 | 126 | 226 | 376 | 526 | 676 | 826 | 976 | |
| H3 | 2396 | 2546 | 2646 | 2796 | 2946 | 3096 | 3246 | 3396 | |
| H4 | 71-552 | ||||||||
| K | 1400-2000 | ||||||||
| W | 3400 | 3550 | 5000 | ||||||
| B | 5054 | 5204 | 5948 | ||||||
| b | 230 | ||||||||
| Max. Wheel Load (KN) | 72-152 | ||||||||
| Total Power (KW) | 10-15.5 | ||||||||
| Lifting Height (m) | 16 | ||||||||
| Hoisting Speed (m/min) | 5 | ||||||||
Product Features:
Application:
Double girder overhead crane is an important tool and equipment to realize mechanization and automation of production process in modern industrial production and lifting and transportation. Therefore, double-girder overhead cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals and logistics turnover departments and places.

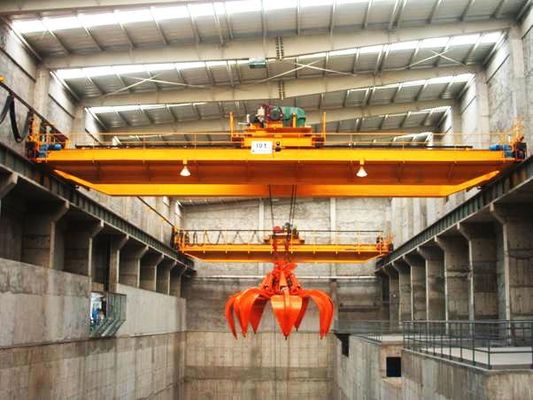

Photos:
About products: In order to better serve you, please tell us the following data:
1. Bearing capacity
2. Span (track center distance)
3. Lifting height (from the hook center to the ground)
4. Power supply: voltage
5. Working environment: description of lifting cargo, service environment and temperature
6. If the workshop drawings can be provided, it will be a better support.
