5t 5-40m Span Double Girder Crane With Top Running Trolley

5t 5-40m Span Double Girder Crane With Top Running Trolley
5t 5-40m Span Double Girder Crane With Top Running Trolley 5t 5-40m Span Double Girder Crane With Top Running Trolley

Large Image :  5t 5-40m Span Double Girder Crane With Top Running Trolley

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 45 workdays
Payment Terms: L/C, T/T
Supply Ability: 500 sets per year

5t 5-40m Span Double Girder Crane With Top Running Trolley

Description
Keywords: Double Girder Crane Condition: New
Span: 5-40m Or On Request Feature: Bridge Crane
Max. Lifting Height: 9m,12m,6m Max. Lifting Load: 5 Ton
Control Method: Wireless Remote Control,Ground Control Power Source: 3 Phase 380V 50hz Or Accord Your Requirements
High Light:

40m Span Double Girder Crane

,

5t Double Girder Crane

,

Top Running Trolley Overhead Crane

5t 5-40m Span Double Girder Crane With Top Running Trolley



Introduction:



Double girder cranes are generally composed of mechanical, electrical and metal structures. The external appearance of the bridge crane is a single span flat plate bridge with two ends supported on two parallel overhead rails. Double girder cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals, logistics turnover and other departments and places.



Advantage:



1. Reasonable structure and beautiful appearance

High site utilization, large operation range, wide adaptability, time-saving and labor saving, low noise



2. Excellent performance and large lifting capacity

Light deadweight, small wheel pressure, simple structure, convenient operation and stable operation performance



3. Simple operation and land saving

The height above the track surface is small, occupying small space, saving space



4. Own factory, supporting installation

Customized production according to customer requirements, fast delivery, support for site measurement, installation and after-sales warranty



Technical Parameter:



Cap (t) 15 20 32
Span (m) 22.5 25.5 28.5 31.5 34.5 22.5 25.5 28.5 31.5 34.5 22.5 25.5 28.5 31.5 34.5

Main

Dimensions

(mm)

H 2208 2308 2310 2570 2626 2730
H1 940 1040 940 1080 1070 1170
H2 390 540 690 840 542 692 842 992 1042 416 566 716 816 820
H3 2810 2960 3110 3260 2962 3112 3262 3412 3462 2936 2986 3136 3236 3240
K 2000 2500 3000
W 4400 5000 4900 5500 5300 5500
B 6234 6844 7354 7464 7398 7258 7478
B1 260 260 300
Max. Wheel Load (KN) 170 190 203 215 230 225 239 250 260 272 305 322 332 345 357
Total Power (KW) 63 94.5 111.3
Lifting Height (m) 16 15 15
Hoisting Speed (m/min) 13.2 12.6 12.5



Application:



1. Bridge-type double-girder cranes are widely used in factories, warehouses, stockyards and other occasions to lift goods. It is forbidden to use in flammable, explosive and corrosive medium environments. There are two types of operation on the ground and in the control room. There are two types of operation room, open type and closed type, which can be divided into two types of left or right installation according to the actual situation.
2. Bridge-type double-girder cranes are widely used in workshops, warehouses, stockyards, etc. It has the advantages of compact size, low building headroom, light weight and small wheel pressure.



Photos:

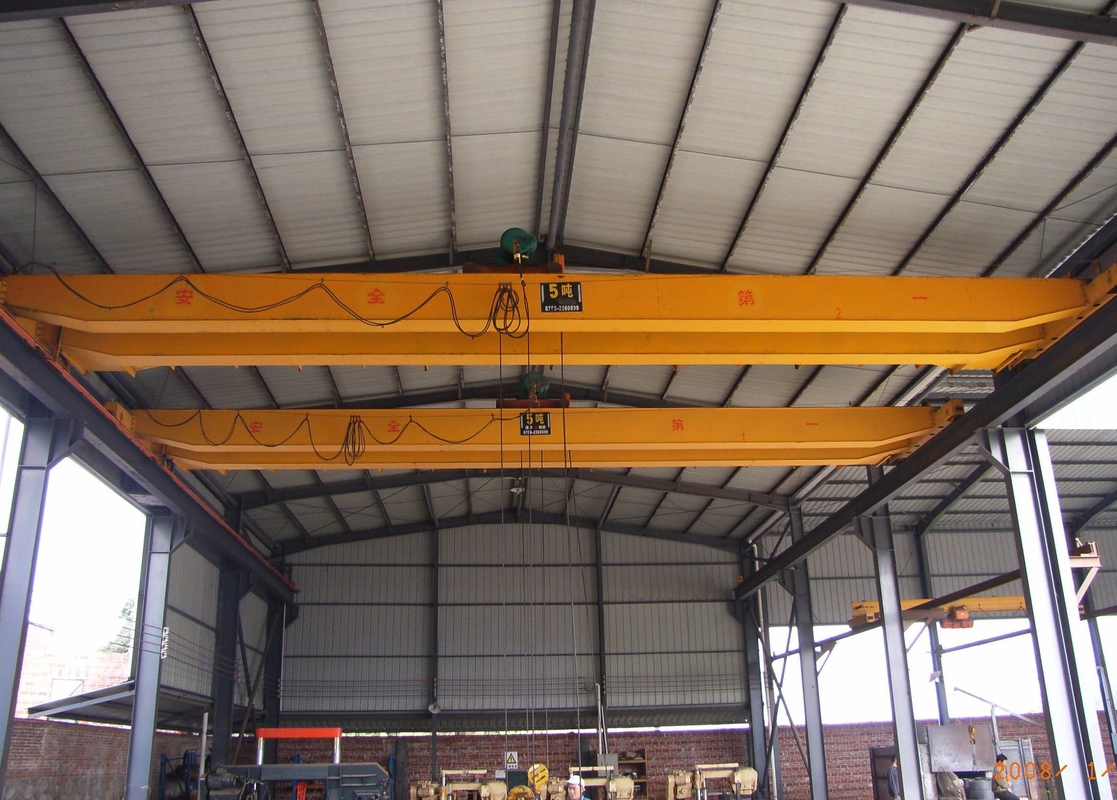

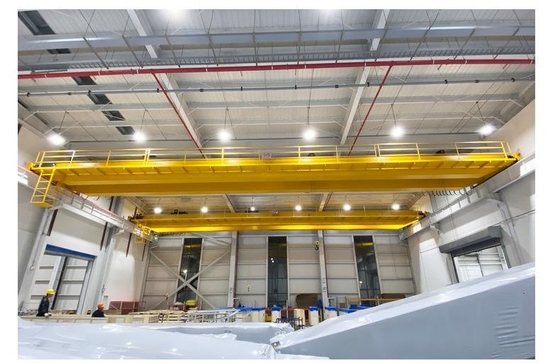

5t 5-40m Span Double Girder Crane With Top Running Trolley 0
