Product Details:
|
| Keywords: | Double Girder Overhead Crane | Span: | 7.5-31.5m |
|---|---|---|---|
| Feature: | Bridge Crane | Max. Lifting Height: | 9m,12m,6m |
| Max. Lifting Load: | 150t / 50t | Crane Feature: | Easy Operated Girder Bridge Crane |
| Application: | Workshop,Warehouse,factory | Working Duty: | A5-A7 |
| High Light: | Double Girder Eot Crane,10 Tons Double Girder Eot Crane |
||

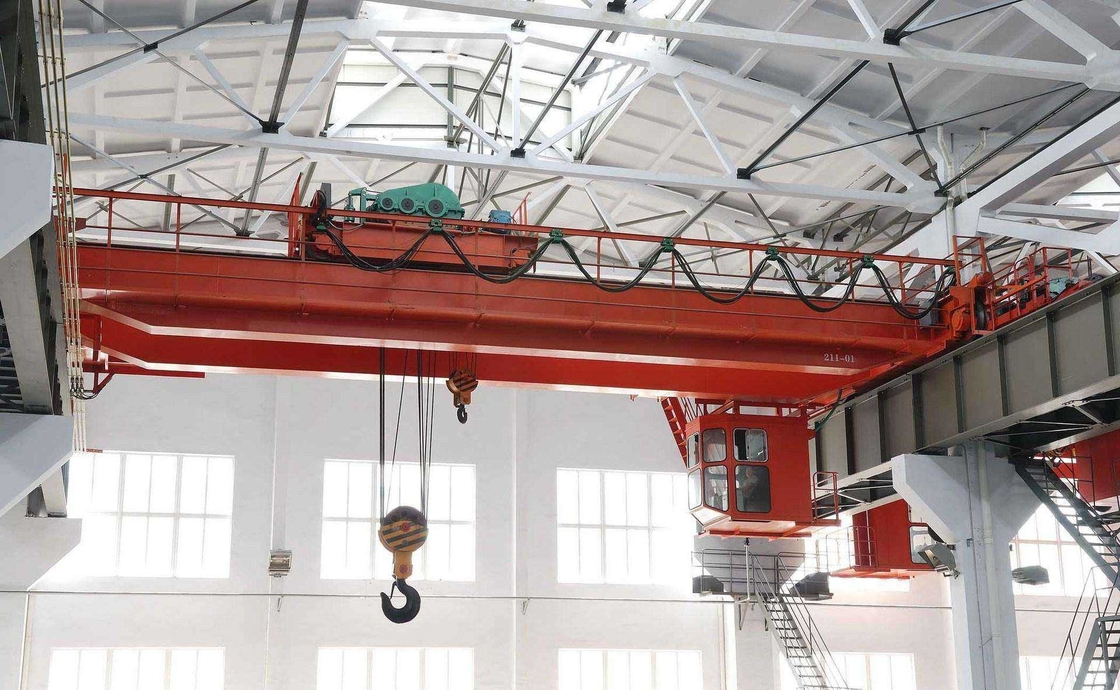

Lifting Capacity 5 ~ 10 Tons Eot Crane Double Girder With Cab Operation
Introduction:
Double girder bridge cranes are widely used in indoor and outdoor warehouses, workshops, wharfs and open storage yards. It is mainly composed of bridge, crane running mechanism, trolley, electrical equipment, etc. According to the frequency of use, it can be divided into three working levels: A5, A6 and A7. Its operation is completed in the cab.
Technical Parameter:
Lifting capacity: 5~10 tons, 16/3.2~50/10 tons, 75/20~100/20 tons, 100/32 tons, 125/30~250/50 tons, 300/40 tons, 350/75 tons, 400/80 tons, 600/150 tons
Span: 10.5~31.5m, 13~31m.
Lifting height: 6~22 m.
| Cap (t) | 150t / 50t | ||||||||
| Span (m) | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | |
|
Main Dimensions (mm) |
H | 1763/1800 | |||||||
| H1 | 765 | ||||||||
| H2 | 24 | 126 | 226 | 376 | 526 | 676 | 826 | 976 | |
| H3 | 2396 | 2546 | 2646 | 2796 | 2946 | 3096 | 3246 | 3396 | |
| H4 | 71-552 | ||||||||
| K | 1400-2000 | ||||||||
| W | 3400 | 3550 | 5000 | ||||||
| B | 5054 | 5204 | 5948 | ||||||
| b | 230 | ||||||||
| Max. Wheel Load (KN) | 72-152 | ||||||||
| Total Power (KW) | 10-15.5 | ||||||||
| Lifting Height (m) | 16 | ||||||||
| Hoisting Speed (m/min) | 5 | ||||||||
Design advantages:
1. The double-girder bridge crane is the first in the design of honeycomb girder, which has the characteristics of light weight, large load and strong wind resistance.
2. The unique steel pin connection is not only firm and reliable, but also the assembly time is short.
3. Flexible rod outriggers can be disassembled into a single piece for construction site steering, which is convenient for transportation.
4. The smallest installed capacity solves the difficulty of using electricity in field construction.
Application:
1. Bridge-type double-girder cranes are widely used in factories, warehouses, stockyards and other occasions to lift goods. It is forbidden to use in flammable, explosive and corrosive medium environments. There are two types of operation on the ground and in the control room. There are two types of operation room, open type and closed type, which can be divided into two types of left or right installation according to the actual situation.
2. Bridge-type double-girder cranes are widely used in workshops, warehouses, stockyards, etc. It has the advantages of compact size, low building headroom, light weight and small wheel pressure.

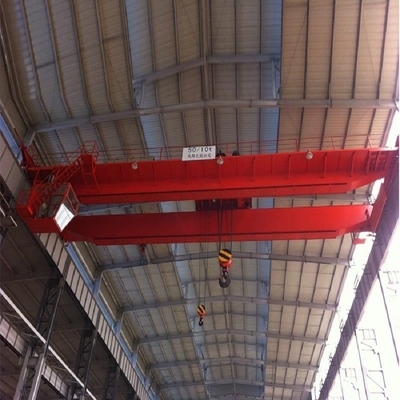

Photos:
