Product Details:
|
| Keywords: | Double Girder Bridge Crane | Span: | 10.5-31.5m |
|---|---|---|---|
| Feature: | Large Lifting Capacity | Max. Lifting Height: | 9m,12m,6m |
| Max. Lifting Load: | 50 / 10 Ton | Main Girder Structure: | Box Girder |
| Application: | Workshop,Warehouse,factory | Working Duty: | A5-A7 Heavy Duty |
| High Light: | Electric Double Girder Bridge Crane,ISO Double Girder Bridge Crane,10Ton Double Girder Crane |
||
ISO 50 / 10 Ton Electric Double Girder Bridge Crane For Warehouse
Introduction:
The double-girder overhead crane is composed of straight rail, crane main beam, lifting trolley, power transmission system and electrical control system, and is especially suitable for material conveying in the plane range with large suspension and large lifting capacity.
The double-girder bridge crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single-girder gantry crane with the same lifting capacity, and the cost is also higher.
Features:
1. Carefully select materials
The products are carefully selected for stable operation
2. Various models
Various specifications and models of hoisting machinery and accessories
3. Diversified functions
Stable operation, flexible operation, high operation efficiency and wide adaptability
4. Processing customization
Can be customized according to customer requirements
5. Timely delivery
Place an order number and deliver goods in time according to the order requirements
Technical Parameter:
| Cap (t) | 5/ 10 | ||||||||
| Span (m) | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | |
|
Main Dimensions (mm) |
H | 1763/1800 | |||||||
| H1 | 765 | ||||||||
| H2 | 24 | 126 | 226 | 376 | 526 | 676 | 826 | 976 | |
| H3 | 2396 | 2546 | 2646 | 2796 | 2946 | 3096 | 3246 | 3396 | |
| H4 | 71-552 | ||||||||
| K | 1400-2000 | ||||||||
| W | 3400 | 3550 | 5000 | ||||||
| B | 5054 | 5204 | 5948 | ||||||
| b | 230 | ||||||||
| Max. Wheel Load (KN) | 72-152 | ||||||||
| Total Power (KW) | 10-15.5 | ||||||||
| Lifting Height (m) | 16 | ||||||||
| Hoisting Speed (m/min) | 5 | ||||||||
Application:
Double girder overhead crane is an important tool and equipment to realize mechanization and automation of production process in modern industrial production and lifting and transportation. Therefore, double-girder bridge cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals and logistics turnover and other departments and places.

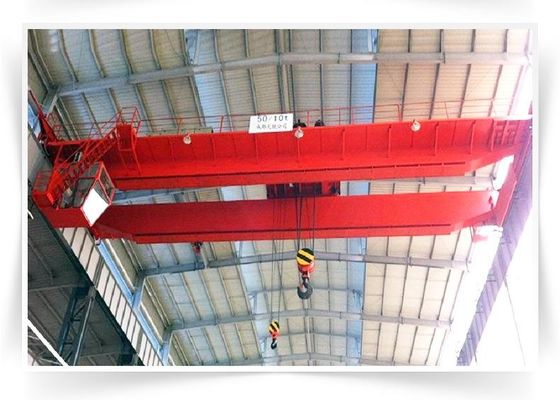

Photos:
