Product Details:
|
| Keywords: | Qb Model Double Girder 30 Ton Overhead Crane | Condition: | New |
|---|---|---|---|
| Span: | 15M | Feature: | Explosion Proof |
| Max. Lifting Height: | 9m,12m,6m | Capacity: | 20/5 Ton |
| Working Duty: | A5-A7 | Application: | Lifting And Transportation In Industrial Production |
| High Light: | Double Girder Overhead Crane 30Ton,12m Explosion Proof Overhead Crane |
||

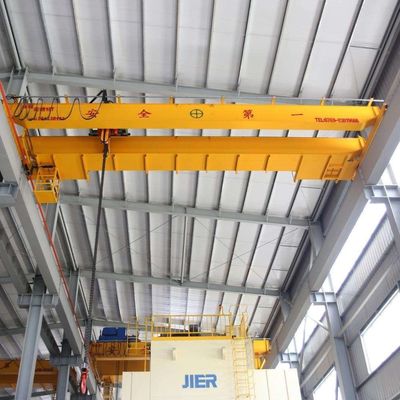

Qb Model Double Girder 30 Ton Overhead Crane Explosion Proof
Introduction:
The double-girder European crane has a compact design, light weight, small wheel pressure and uniform load distribution, which can save customers considerable investment and greatly improve the effective working space. The double-girder European crane is not only safe and reliable, but also ergonomic in design, easy to operate, safe and comfortable, making material transportation more convenient and efficient. There are many dosing options for customers to choose, such as hoisting frequency conversion, hoist double, remote control, etc., to meet the needs of various working conditions or logistics transportation.
Product Features:
1. Reasonable structure and beautiful appearance
High site utilization, large operation range, wide adaptability, time-saving and labor saving, low noise
2. Excellent performance and large lifting capacity
Light deadweight, small wheel pressure, simple structure, convenient operation and stable operation performance
3. Simple operation and land saving
The height above the track surface is small, occupying small space, saving space
4. Own factory, supporting installation
Customized production according to customer requirements, fast delivery, support for site measurement, installation and after-sales warranty
Technical Parameter:
| Technical Specifications | ||||||||
| Lifting Capacity | Span | Lifting | Work Duty | Main Lifting | Vice Lifting | Trolley Traveling | Crane Traveling | Track |
| Height | Speed | Speed | Speed | Speed | ||||
| t | m | m | m/min | m/min | m/min | m/min | ||
| 5 | 13.5~19.5 | 18 | A5 | 0.84~8.4 | 3.4~34 | 5.1~51 | 38kg | |
| 22.5~31.5 | 5~50 | |||||||
| 5 | 13.5~19.5 | 18 | A5 | 0.78~7.8 | 3~30 | 5~50 | 38kg | |
| 22.5~31.5 | 5.2~52 | |||||||
| 16/5 | 13.5~19.5 | 18/18 | A5 | 0.76~7.6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 | |||||||
| 20/5 | 13.5~19.5 | 18/18 | A5 | 0.6~6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 | |||||||
| 32/5 | 13.5~19.5 | 18/18 | A5 | 0.52~5.2 | 0.84~8.4 | 3.1~31 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 | |||||||
| Oct-50 | 13.5~19.5 | 18/18 | A5 | 0.43~3.9 | 0.78~7.8 | 3.6~36 | 4.8~48 | 43kg |
| 22.5~31.5 | 5.4~54 | |||||||
| Notes: Customizable | ||||||||
Application:
Double girder overhead crane is an important tool and equipment to realize mechanization and automation of production process in modern industrial production and lifting and transportation. Therefore, double-girder overhead cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals and logistics turnover departments and places.
About products: In order to better serve you, please tell us the following data:
1. Bearing capacity
2. Span (track center distance)
3. Lifting height (from the hook center to the ground)
4. Power supply: voltage
5. Working environment: description of lifting cargo, service environment and temperature
6. If the workshop drawings can be provided, it will be a better support.
