Product Details:
|
| Keywords: | Eot Crane Double Girder | Type: | Top Running Bridge Crane |
|---|---|---|---|
| Span: | 7.5-31.5m | Max. Lifting Height: | 9m,12m,6m |
| Capacity: | 5 - 50t | Working Duty: | A5-A7 |
| Application: | Industrial And Mining Enterprises, Iron And Steel Chemical Industry, Railway Transportation, Ports And Terminals | ||
| High Light: | 5T Double Girder Eot Crane,Indoor Double Girder Eot Crane,A7 Top Running Bridge Crane |
||

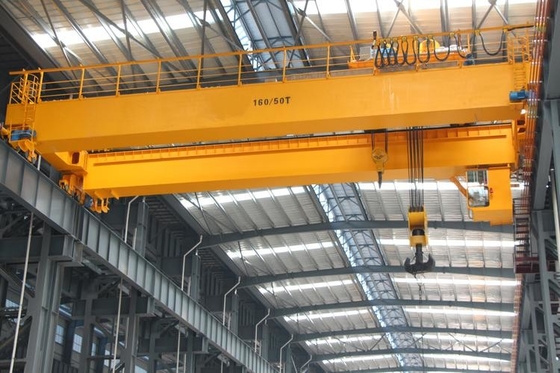

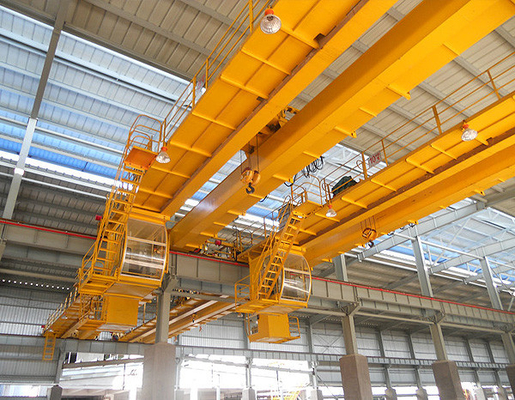

Custom 5T To 50T Eot Crane Double Girder Indoor Top Running Bridge Crane
Introduction:
Double girder crane generally refers to double girder bridge crane, which is generally composed of mechanical, electrical and metal structures. The external appearance of the bridge crane is a single span flat plate bridge with two ends supported on two parallel overhead rails. Double girder cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals, logistics turnover and other departments and places.
Features:
European-style overhead cranes have light weight, small equipment net height, large working range, high-quality components, strict manufacturing quality control, and produce cost-effective products that are safe, reliable, excellent in performance and less maintenance. Compared with traditional industrial cranes, the main advantages of European cranes can be divided into the following aspects:
1. Reduce customer investment, make full use of plant space, and improve production efficiency
2. Good combination, many specifications and complete product series, which can cover most of the needs of customers
3. Safe and reliable, advanced design concept, mature technology to ensure product design
4. Advanced control technology and high-quality key components ensure excellent crane performance
Technical Parameter:
| Technical Specifications | ||||||||
| Lifting Capacity | Span | Lifting | Work Duty | Main Lifting | Vice Lifting | Trolley Traveling | Crane Traveling | Track |
| Height | Speed | Speed | Speed | Speed | ||||
| t | m | m | m/min | m/min | m/min | m/min | ||
| 5 | 13.5~19.5 | 18 | A5 | 0.84~8.4 | 3.4~34 | 5.1~51 | 38kg | |
| 22.5~31.5 | 5~50 | |||||||
| 5 | 13.5~19.5 | 18 | A5 | 0.78~7.8 | 3~30 | 5~50 | 38kg | |
| 22.5~31.5 | 5.2~52 | |||||||
| 16/5 | 13.5~19.5 | 18/18 | A5 | 0.76~7.6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 | |||||||
| 20/5 | 13.5~19.5 | 18/18 | A5 | 0.6~6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 | |||||||
| 32/5 | 13.5~19.5 | 18/18 | A5 | 0.52~5.2 | 0.84~8.4 | 3.1~31 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 | |||||||
| Oct-50 | 13.5~19.5 | 18/18 | A5 | 0.43~3.9 | 0.78~7.8 | 3.6~36 | 4.8~48 | 43kg |
| 22.5~31.5 | 5.4~54 | |||||||
| Notes: Customizable | ||||||||
Safety Protection:
Overload limiter, limit switch (lifting and travelling), interlocking protection device, buffer, rail clear plate, shield, bus protection plate, anti-collision device, main disconnecting switch, emergency brake system and motor overload protection device.
Application:
Double girder overhead crane is an important tool and equipment to realize mechanization and automation of production process in modern industrial production and lifting and transportation. Therefore, double-girder overhead cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals and logistics turnover departments and places.
