Product Details:
|
| Keywords: | European Standard Single Girder Overhead Crane | Capacity: | 1-10 Ton |
|---|---|---|---|
| Feature: | Frequency Control And Braking | Span: | 1-15m |
| Max. Lifting Height: | 9m,12m,6m | Control Method: | Wireless Remote Control |
| Advantage: | High Transmission Efficiency | Application: | Workshop,Warehouse,factory |
| High Light: | 12.5t Eot Overhead Crane,12.5t Single Girder Eot Crane,Eot Overhead Crane European Standard |
||

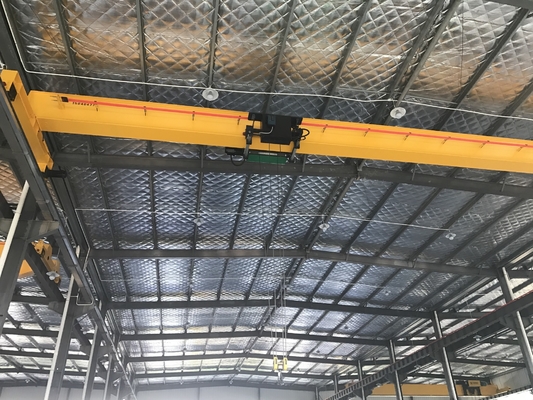

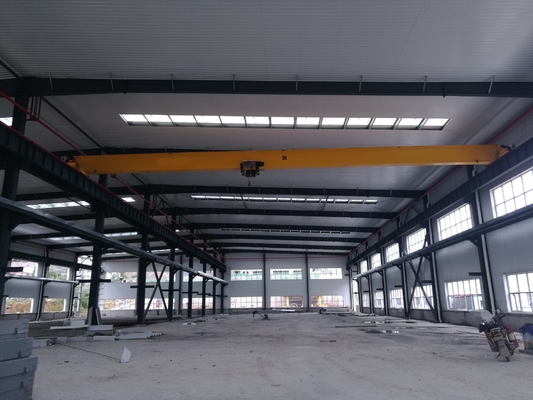

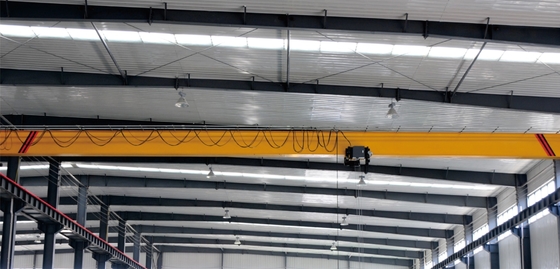

Workshop1-10ton single girder EOT overhead crane European standard OEM electric travelling crane
Introduction:
European single-girder cranes' advantages: light weight, compact structure and low energy consumption. With unique design concept, it has the characteristics of small size(saving space of workshop), high efficiency , low noise, and small wheel pressure.
Introduction of overhead crane
Widely used in warehouse and factory, overhead cranes for sale are an important material handling equipment. While, different country and region have their own features.
There are many difference between them in appearance and in technical standards. While, as the development and the communication of the technology, the different is smaller and smaller.
Technical Parameter:
| Span | m | 7.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 |
| Capacity | t | 1~12.5t | ||||||
| Total weight | kg | 1781~12086 | ||||||
| Trolley weight | kg | 405~740 | ||||||
| Max. Wheel load | kn | 13.5~90.94 | ||||||
| Travel rail | P24~P43 | |||||||
| Lifting speed | m/min | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 |
| Lifting height | m | ≥ 6 | ≥ 6 | ≥ 6 | ≥ 6 | ≥ 6 | ≥ 6 | ≥ 6 |
| Total motor power | kw | 4.31 | 4.31 | 4.31 | 4.31 | 4.67 | 4.67 | 4.67 |
| Crane speed | m/min | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 |
| Trolley speed | m/min | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 |
| Working duty | M5/A5 | |||||||
Advantage:
1. The main structural characteristics of the crane

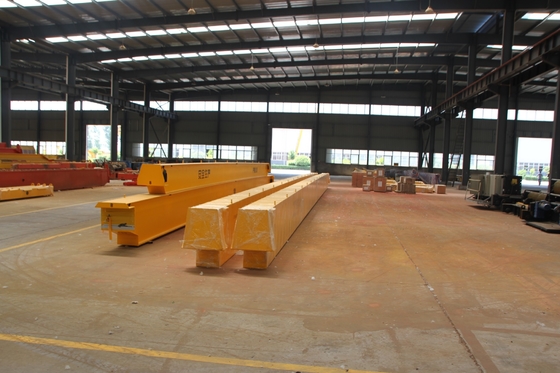

The main girder of the European crane adopts the box girder structure. The advantages of this structure are that the structure is reasonable and the strength is high. The crane hoist is firmly combined with the lower wing of the main girder, and there is no potential safety hazard. The European crane can increase the effective lifting height, thereby improving the effective working space, and the clear height of the space can reach 1.5 meters. In addition, the wheel pressure of European cranes is less, so that the rail-bearing beams will be reduced.
2. The space size of the crane
The space design of the European crane is more reasonable, the appearance is light and beautiful, and the limited space of the workshop can be used reasonably and effectively. The limit distance between the hook of the European crane and the walls on both sides is relatively small, and the headroom is low.
Sketch Drawing:
Application:
Single-girder bridge cranes have many uses and are widely used in real life. In many factories, many product manufacturers choose cranes for easy handling, and single-girder overhead cranes are more prominent in terms of assisting and transportation.
In addition to general machinery workshops, single-girder overhead cranes are widely used in petroleum and petrochemical, railway construction, civil aviation airports, hydropower plants, ports, papermaking, building materials, metallurgy and other workshops, warehouses, and material yards.
