Product Details:
|
| Keywords: | Overhead Crane Double Girder 10ton Capacity | Capacity: | 10ton |
|---|---|---|---|
| Span: | 1-20m, Customized, 15m Is For This Product Link | Feature: | Saving Space, High Efficiency,low Noise.easy Maintainence |
| Advantage: | Safe, Efficient, Easy Operation | Max. Lifting Height: | 1-15m Customized |
| Working Duty: | A1-A8 Customized | Application: | Lifting And Transportation In Industrial Production |
| High Light: | Double Girder Eot Crane 10ton,Customized Double Girder Eot Crane,Customized 10 ton Overhead Crane |
||

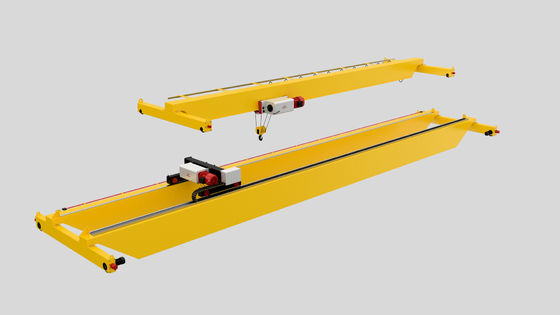

Factory direct overhead Crane Double Girder 15t High Lifting Speed with electric hoist eot crane
Introduction:
Double beam bridge crane is designed to lift heavy materials or transfer goods in warehouse, factory, dock, logistics company.etc.. Its bridge runs longitudinally along the track laid on the viaducts on both sides, and the lifting trolley runs transversely along the track laid on the bridge, forming a rectangular working range, which can make full use of the space under the bridge to lift or transfer materials.
Advantages:
1. Reasonable structure and compact appearance
High site utilization, large operation range, wide adaptability, time-saving and labor saving, low noise
2. Excellent performance and large lifting capacity
Light deadweight, small wheel pressure, simple structure, convenient operation and stable operation performance
3. Simple operation and land saving
The height above the track surface is small, occupying small space, saving space
4. Factory direct, strong OEM team
Customized production according to customer requirements, fast delivery, support for site measurement, installation and after-sales warranty
Technical Parameter:
| Technical Specifications | ||||||||
| Lifting Capacity | Span | Lifting | Work Duty | Main Lifting | Vice Lifting | Trolley Traveling | Crane Traveling | Track |
| Height | Speed | Speed | Speed | Speed | ||||
| t | m | m | m/min | m/min | m/min | m/min | ||
| 5 | 13.5~19.5 | 18 | A5 | 0.84~8.4 | 3.4~34 | 5.1~51 | 38kg | |
| 22.5~31.5 | 5~50 | |||||||
| 5 | 13.5~19.5 | 18 | A5 | 0.78~7.8 | 3~30 | 5~50 | 38kg | |
| 22.5~31.5 | 5.2~52 | |||||||
| 16/5 | 13.5~19.5 | 18/18 | A5 | 0.76~7.6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 | |||||||
| 20/5 | 13.5~19.5 | 18/18 | A5 | 0.6~6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 | |||||||
| 32/5 | 13.5~19.5 | 18/18 | A5 | 0.52~5.2 | 0.84~8.4 | 3.1~31 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 | |||||||
| Oct-50 | 13.5~19.5 | 18/18 | A5 | 0.43~3.9 | 0.78~7.8 | 3.6~36 | 4.8~48 | 43kg |
| 22.5~31.5 | 5.4~54 | |||||||
| Notes: Customizable | ||||||||

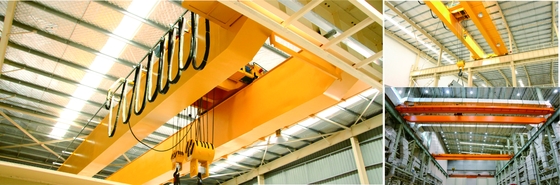

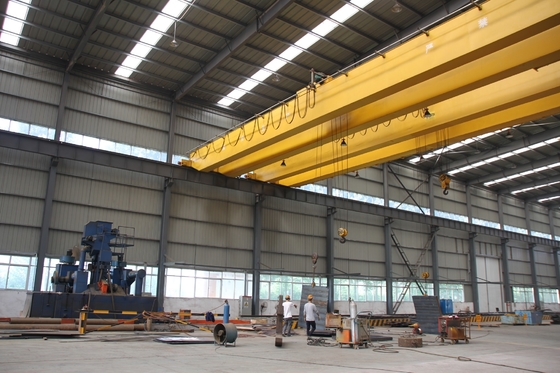

Application:
Double girder overhead crane is an important tool to realize mechanization and automation of production process in modern industrial production and lifting and transportation. Therefore, double-girder overhead cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals and logistics turnover departments and places, and gained high reputation in these fields.
Before quoting: In order to better serve you, please let us know the following data:
1. Bearing capacity
2. Span (track center distance)
3. Lifting height (from the hook center to the ground)
4. Power supply: voltage
5. Working environment: description of lifting cargo, service environment and temperature
6. If the workshop drawings can be provided, it will be a better support.
