Product Details:
|
Keywords: | Double Girder Overhead Crane | Capacity: | 15 Ton |
---|---|---|---|
Span: | 5-20m ,Customized | Feature: | No Deformation, Full Use Of Space, High Efficiency |
Max. Lifting Height: | 5-15meters, Customized. | Advantage: | Safe, Stable, Easy Maintainence. |
Working Duty: | A3, A1-A8 Customized | Guarranty: | 1 Year |
Certificate: | CE& ISO9001:2015 | Logo: | Accept, Please Show Us Panton Number |
Color: | Red/yellow/blue, Customized | Main Process: | Welding |
After-sales Service: | Free Parts Will Be Sent During Guaranty If Quality Issue Occurs, Or Technical Support | Material: | Steel Plate |
High Light: | smooth running double beam eot crane,5 ton double beam eot crane,5 ton double beam gantry crane |

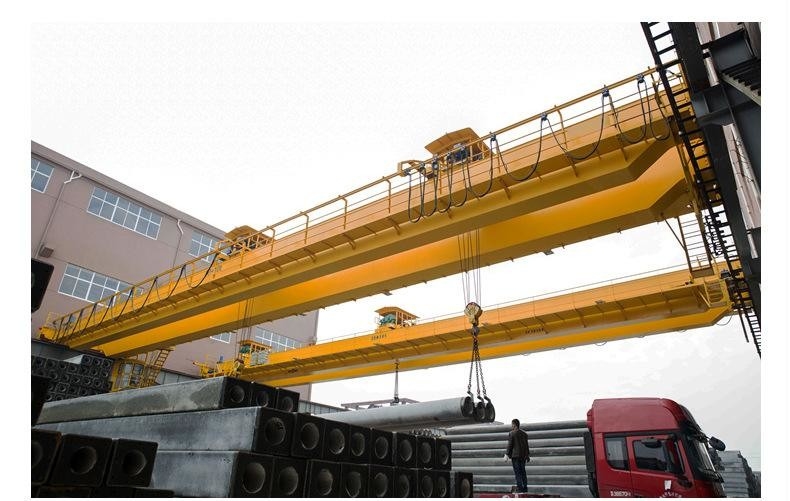

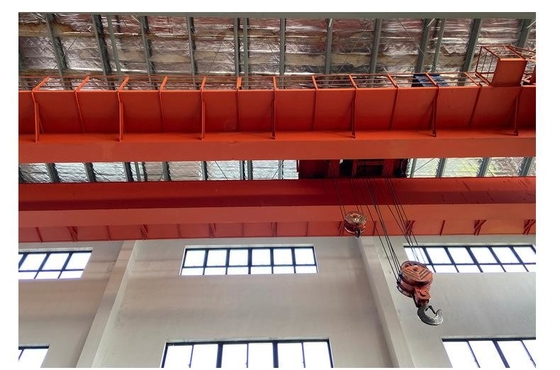

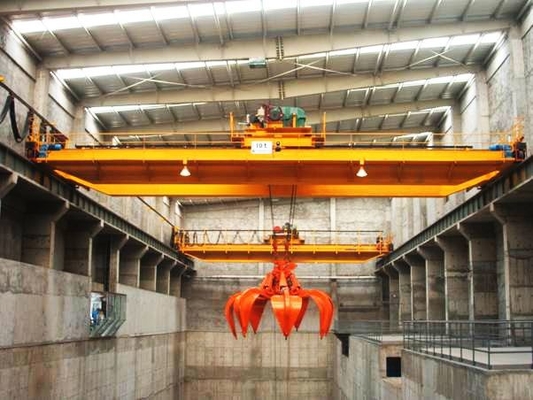

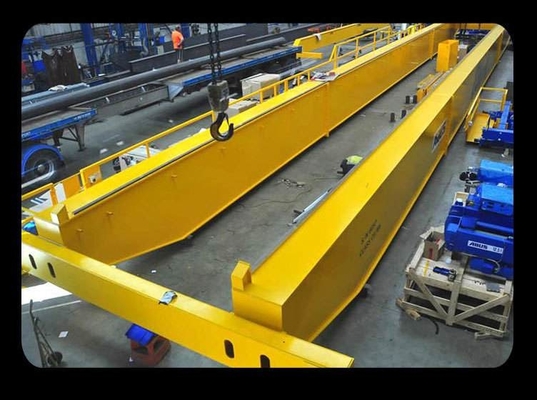

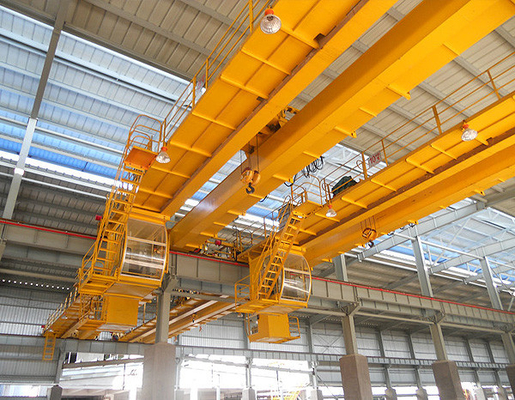

Indoor smooth running 5 Ton Eot Crane Overhead Crane Double Girder Traveling Bridge Cranes
Introduction:
A double girder overhead crane is a type of industrial crane that consists of two parallel girders or beams mounted on top of the supporting structure. It is designed for heavy-duty lifting and material handling applications in industries such as manufacturing, construction, warehouses, and more.
Double beam bridge crane is also known as double beam crane and crown block. Its bridge runs longitudinally along the track laid on the viaducts on both sides, and the lifting trolley runs transversely along the track laid on the bridge, forming a rectangular working range, which can make full use of the space under the bridge to lift materials without being hindered by ground equipment.
Advantages:
1. Wide Span and Coverage: With two parallel girders, this type of crane offers a wide span and coverage area. It can traverse along the length of the girders, allowing for effective material handling and reaching various workstations or storage areas within the facility.
2. Versatile Lifting Solutions: Double girder overhead cranes provide versatility in lifting solutions. They can be equipped with various lifting mechanisms, such as wire rope hoists or chain hoists, to accommodate different load types and handling requirements. This flexibility enables precise load positioning and efficient workflow.
3. Smooth and Precise Operation: These cranes are designed for smooth and precise operation. The double girder configuration ensures stability and minimizes deflection during lifting, resulting in smooth acceleration, deceleration, and load positioning. This enhances productivity and safety in material handling tasks.
4. Enhanced Hook Height and Lift Speed: Double girder overhead cranes offer increased hook height and lift speed compared to single girder cranes. The additional space between the girders allows for higher lifting heights, accommodating taller objects and providing more flexibility in vertical positioning.
Technical Parameter:
Technical Specifications | ||||||||
Lifting Capacity | Span | Lifting | Work Duty | Main Lifting | Vice Lifting | Trolley Traveling | Crane Traveling | Track |
Height | Speed | Speed | Speed | Speed | ||||
t | m | m | m/min | m/min | m/min | m/min | ||
5 | 13.5~19.5 | 18 | A5 | 0.84~8.4 | 3.4~34 | 5.1~51 | 38kg | |
22.5~31.5 | 5~50 | |||||||
5 | 13.5~19.5 | 18 | A5 | 0.78~7.8 | 3~30 | 5~50 | 38kg | |
22.5~31.5 | 5.2~52 | |||||||
16/5 | 13.5~19.5 | 18/18 | A5 | 0.76~7.6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
22.5~31.5 | 5.2~52 | |||||||
20/5 | 13.5~19.5 | 18/18 | A5 | 0.6~6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
22.5~31.5 | 5.2~52 | |||||||
32/5 | 13.5~19.5 | 18/18 | A5 | 0.52~5.2 | 0.84~8.4 | 3.1~31 | 5.1~51 | 43kg |
22.5~31.5 | 5.2~52 | |||||||
Oct-50 | 13.5~19.5 | 18/18 | A5 | 0.43~3.9 | 0.78~7.8 | 3.6~36 | 4.8~48 | 43kg |
22.5~31.5 | 5.4~54 | |||||||
Notes: Customizable |
Application:
Double girder overhead crane is an important tool and equipment to realize mechanization and automation of production process in modern industrial production and lifting and transportation. Therefore, double-girder overhead cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals and logistics turnover departments and places.
About products: In order to better serve you, please tell us the following data:
1. Bearing capacity
2. Span (track center distance)
3. Lifting height (from the hook center to the ground)
4. Power supply: voltage
5. Working environment: description of lifting cargo, service environment and temperature
6. If the workshop drawings can be provided, it will be a better support.
