Product Details:
|
| Keywords: | Industrial Gantry Crane | Type: | Rail Mounted Gantry Crane |
|---|---|---|---|
| Span: | 5-40m Or On Request | Certification: | CE |
| Max. Lifting Height: | 9m,12m,6m | Lifting Load: | 16 / 3.2T |
| Power Source: | 3 Phase 380V 50hz Or Accord Your Requirements | Application: | Warehouse Loading And Unloading Materials |
| Condition: | New | Color: | Customer Requirements |
| Crane Feature: | Mobile Double Girder Gantry Crane | Work Duty: | A3-A5,M5-M7 |
| High Light: | 40 ton double girder gantry crane,mining material double girder gantry crane,double girder 40 tonne overhead crane |
||
Double Girder Gantry Crane Introduction:
Overall, gantry cranes provide a versatile and efficient solution for lifting and moving heavy objects in a wide range of industrial applications. They offer flexibility in terms of load capacity, span, and movement, making them essential equipment for material handling operations.
Double Girder Gantry Crane: In a double girder gantry crane, there are two beams or girders running parallel to each other, providing increased lifting capacity and stability.
Double Girder Gantry Crane Features:
1. Low noise, commodious cabin and good view.
2. Safe and reliable traveling.
3. Reasonable structure.
5. Smooth starting and stopping.
6. Saves electricity specifications.
7. Convenient maintenance.
8. Excellent exchangeability for parts.
9. Overload limiter, Limit switch (lifting and traveling), Interlock protection device, Buffer, Overhaul cage, Rail clear plate, Protective cover, Bus bar preventer plate, Anticollision device, Main isolating switch, Emergency stop system, Motor overload protection and so on .
Double Girder Gantry Crane Technical Parameter:
| Load Capacity (ton) | Span /Rail Gauge (m) | Max. Lifting height (m) | Duty Class |
| 10 | 15~35 | 3~25 | A5 or A3 |
| 16 | 15~35 | 3~25 | A5 or A3 |
| 20 | 15~35 | 3~25 | A5 or A3 |
| 32 | 15~35 | 3~25 | A5 or A3 |
| 36 | 15~35 | 3~25 | A5 or A3 |
| 40 | 15~35 | 3~25 | A5 or A3 |
| 50 | 15~35 | 3~25 | A5 or A3 |
| Customizable | Customizable | Customizable | Customizable |
Advantages:
1. Module control speed, micro-speed and double speed;
2. Traveling and lifting smoothly;
3. The power for trolley moving adopts flat cable, sliding smoothly;
4. Control box layout is reasonable, easy to repair;
5. Protection class IP55;
6. Optional main power source ;
7. All external cable line number with mark;
8. Safety smooth touch line, high conductivity, small pressure drop;
9. Light weight, installation convenience;
10. Set electric taxi speed is high, ensure continuing power supply;
11. Optional speed control module, and can realize the micro speed and double speed.
How to choose:
1. Selection of gantry crane
2. Span and cantilever length
3. The principle of determining the wheelbase
4. The gantry crane spacing size is determined

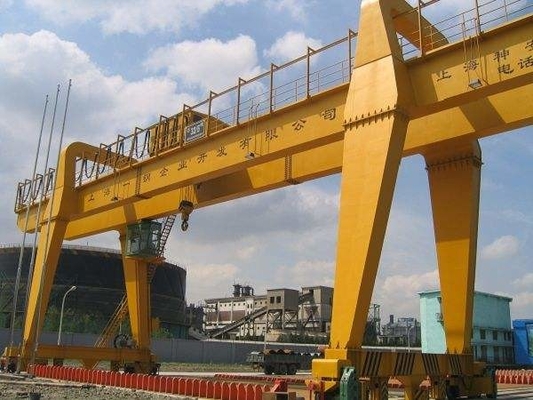

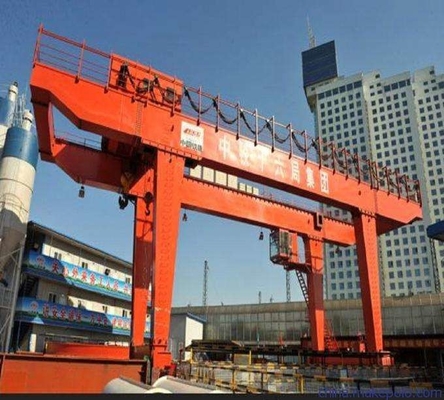

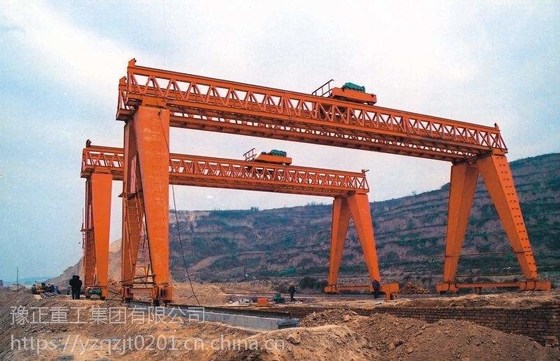

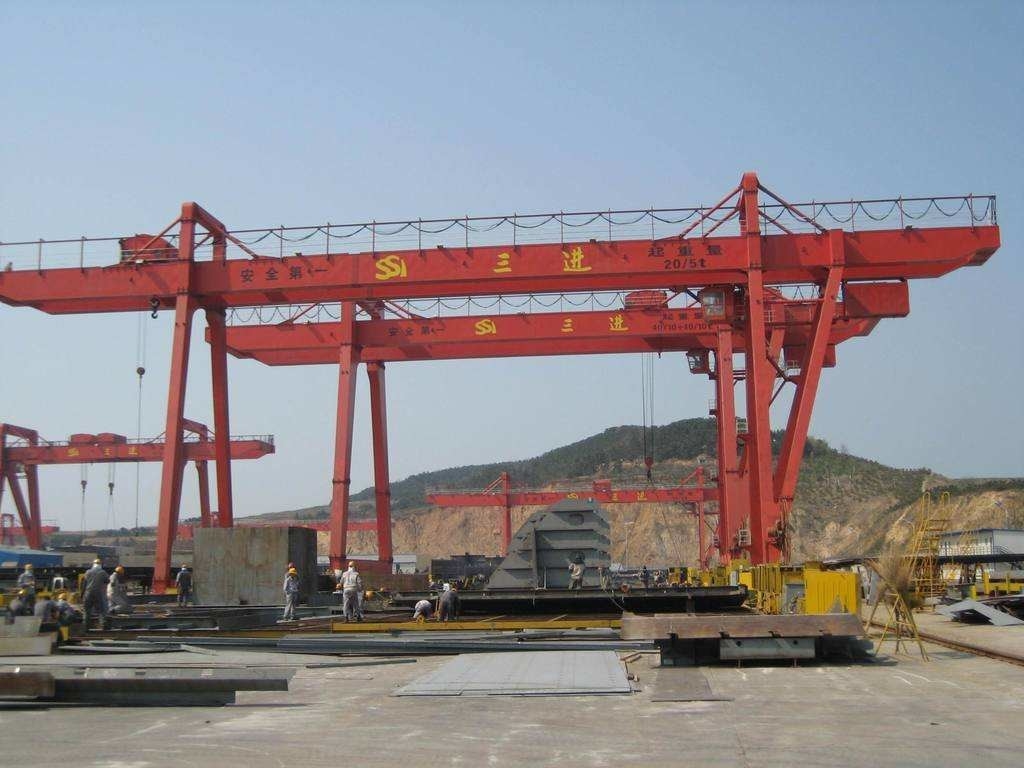

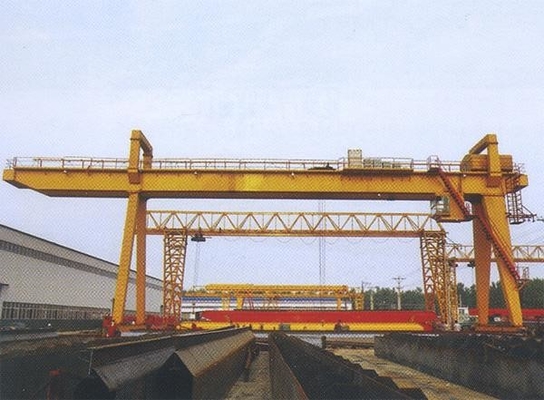

Photo:
