Product Details:
|
| Keywords: | Double Girder Bridge Crane | Span: | 10.5-31.5m |
|---|---|---|---|
| Feature: | Large Lifting Capacity | Max. Lifting Height: | 9m,12m,6m |
| Max. Lifting Load: | 50 / 10 Ton | Main Girder Structure: | Box Girder |
| Application: | Workshop,Warehouse,factory | Working Duty: | A5-A7 Heavy Duty |
| Warranty: | 12months Since Date Of Site Acceptance | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation |
| Color: | Clients' Requirments | Power Source: | 3 Phase 380V 50hz,220-690V 50Hz Three-phase |
| High Light: | 20 tonne double girder overhead crane,electric warehouse double girder overhead crane,20 tonne double overhead crane |
||
Steel Material Handing Bridge Crane 20 Ton Electric Double Girder Overhead Crane For Warehouse
Introduction:
The double-girder overhead crane is composed of straight rail, crane main beam, lifting trolley, power transmission system and electrical control system, and is especially suitable for material conveying in the plane range with large suspension and large lifting capacity.
The double-girder bridge crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single-girder gantry crane with the same lifting capacity, and the cost is also higher.
The double girder overhead crane, also known as a double girder bridge crane, is a type of industrial crane that is designed to lift and move heavy loads in a wide range of applications. It consists of two parallel beams or girders that are supported by vertical legs on each end, forming a bridge-like structure.
Double girder overhead cranes are commonly used in manufacturing, construction, warehouses, and other industries where there is a need for lifting and transporting heavy objects with precision and efficiency. They offer higher lifting capacities and greater stability compared to single girder cranes.
Features:
1. Carefully select materials
The products are carefully selected for stable operation
2. Various models
Various specifications and models of hoisting machinery and accessories
3. Diversified functions
Stable operation, flexible operation, high operation efficiency and wide adaptability
4. Processing customization
Can be customized according to customer requirements
5. Timely delivery
Place an order number and deliver goods in time according to the order requirements
Advantages
The key features and advantages of double girder overhead cranes include:
1.High lifting capacity: Double girder cranes are capable of lifting much heavier loads compared to single girder cranes. They can handle loads ranging from a few tons to several hundred tons.
2.Increased span: The double girder configuration allows for a greater span between the support legs, enabling the crane to cover a larger area and reach multiple workstations within a facility.
3.Enhanced stability: The presence of two girders provides increased stability and reduces the risk of swaying or deflection during lifting and movement operations. This makes double girder cranes suitable for handling heavy and bulky loads.
4.Flexibility and customization: Double girder overhead cranes can be customized to suit specific application requirements. They can be equipped with various lifting mechanisms, such as wire rope hoists or chain hoists, and additional features like variable speed controls, anti-sway systems, and remote control operation.
5.Smooth and precise operation: Double girder cranes are designed for smooth and precise movement of loads. They can be operated manually, with pendant controls, or through advanced automation systems for precise positioning and operation.
Technical Parameter:
| Cap (t) | 5/ 10 | ||||||||
| Span (m) | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | |
|
Main Dimensions (mm) |
H | 1763/1800 | |||||||
| H1 | 765 | ||||||||
| H2 | 24 | 126 | 226 | 376 | 526 | 676 | 826 | 976 | |
| H3 | 2396 | 2546 | 2646 | 2796 | 2946 | 3096 | 3246 | 3396 | |
| H4 | 71-552 | ||||||||
| K | 1400-2000 | ||||||||
| W | 3400 | 3550 | 5000 | ||||||
| B | 5054 | 5204 | 5948 | ||||||
| b | 230 | ||||||||
| Max. Wheel Load (KN) | 72-152 | ||||||||
| Total Power (KW) | 10-15.5 | ||||||||
| Lifting Height (m) | 16 | ||||||||
| Hoisting Speed (m/min) | 5 | ||||||||
Application:
Double girder overhead crane is an important tool and equipment to realize mechanization and automation of production process in modern industrial production and lifting and transportation. Therefore, double-girder bridge cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals and logistics turnover and other departments and places.

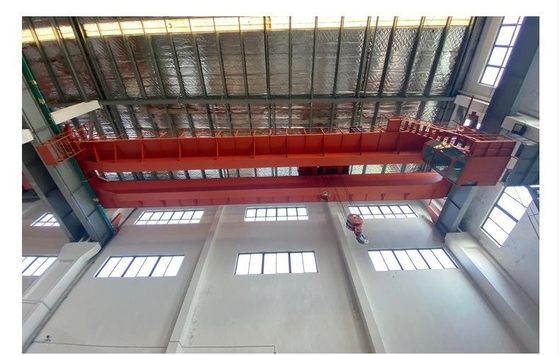

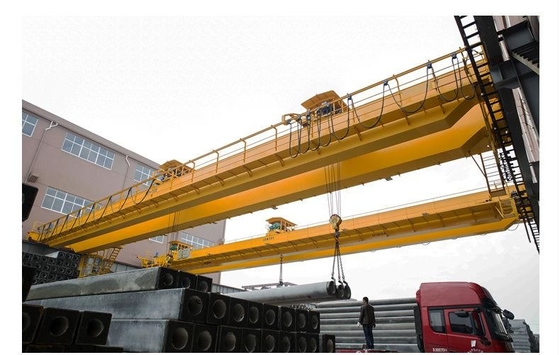

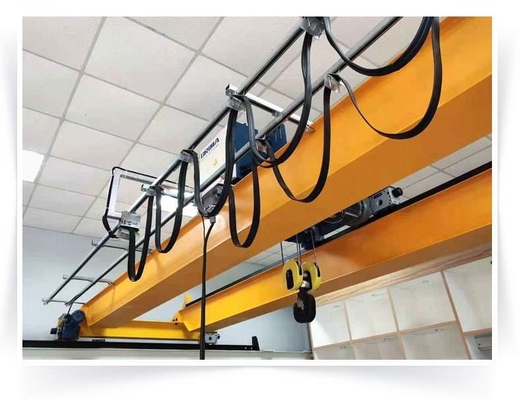

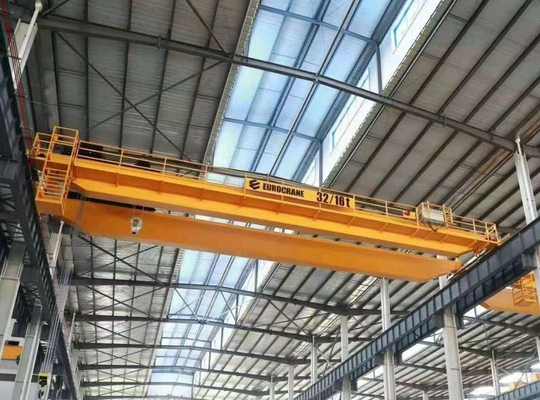

Photos:
