Product Details:
|
| Main Electrical Parts: | Siemens, Chint, Schneider | Crane Feature: | Easy Operated Bridge Crane |
|---|---|---|---|
| Limit Switch: | Included | Working Duty: | A3, A1-A8 Customized |
| Working Grade: | A5-A7 | Steel Track Recommend: | 43kg/m Or QU70 |
| Load Capacity: | 5-800t | Capacity: | 5-100 Ton |
| High Light: | 30m Bridge Hanging Crane,6m Bridge Hanging Crane,Hanging double girder overhead crane |
||

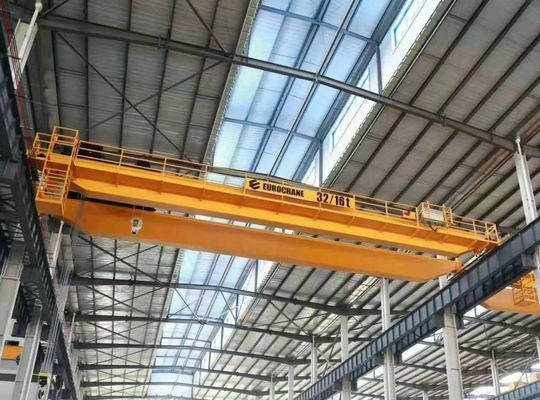

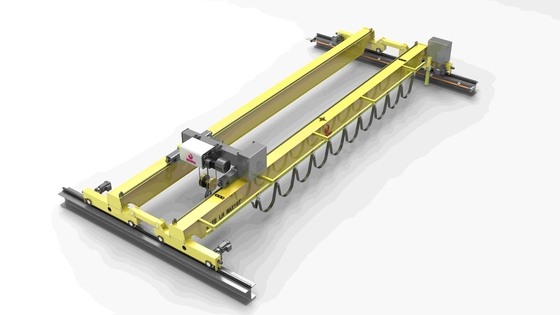

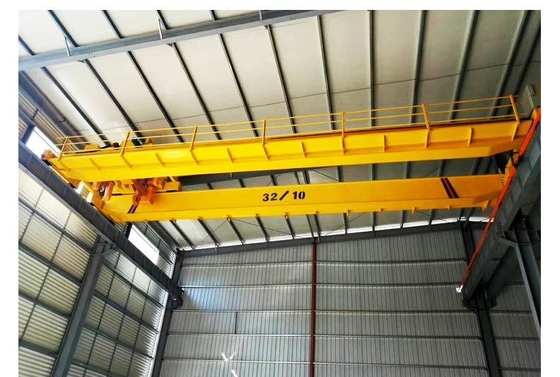

The double girder overhead crane features two main girders that run parallel to each other and are connected by cross beams. The girders are typically made of structural steel and are designed to withstand the weight of the load and the stresses during operation.

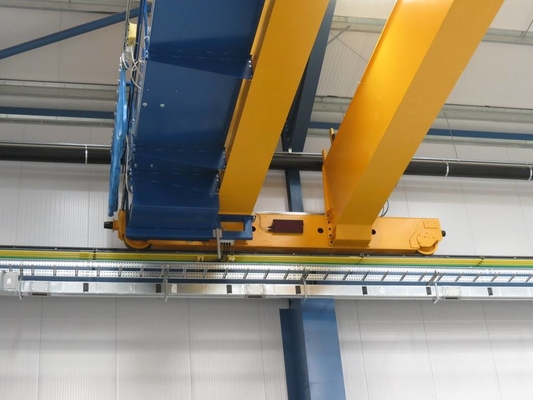

The end trucks are located at each end of the crane and support the girders. They are equipped with wheels or rollers that allow the crane to move along rails or tracks. The end trucks also house the drive mechanisms, such as motors and gearboxes, that power the crane's movements.

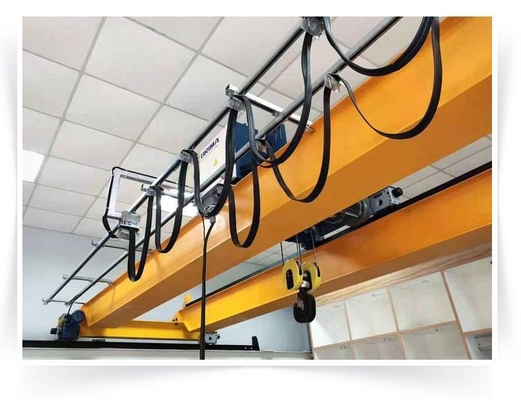

A hoist and trolley assembly is mounted on the girders and is responsible for lifting and moving the load. The hoist is the lifting device that is attached to a trolley, which runs horizontally along the girders. The hoist and trolley system can be electrically or manually operated, depending on the specific requirements.
Double girder overhead cranes are designed to handle heavy loads with capacities ranging from a few tons to several hundred tons. The two parallel girders provide increased stability and load-bearing capacity, making them suitable for lifting and moving large and heavy objects.
The double girder configuration of overhead cranes allows for spanning longer distances compared to single girder cranes. This design provides greater structural rigidity and enables the crane to cover larger areas or workstations within a facility.
The double girder design of overhead cranes also provides a higher hook height compared to single girder cranes. This allows for greater vertical lift and improved flexibility in handling taller loads or working in facilities with higher ceilings.
| Item | Value |
|---|---|
| Warranty | 18 Months |
| Usage | Factory, Steel Factory |
| Girder Type | Double Type |
| Can Be Customized | Available |
| Lift Height | 6-30M |
| Load Capacity | 5-800t |
| Limit Switch | Included |
| Main Electrical Parts | Siemens, Chint, Schneider |
| Working Grade | A5-A7 |
| Capacity | 5-100 Ton |
Double girder overhead cranes are versatile lifting solutions that find extensive use in various industries and applications. From manufacturing and assembly to power plants and construction sites, these cranes offer a reliable and efficient solution for heavy material handling.
Manufacturing and Assembly: In manufacturing facilities, double girder overhead cranes are an essential equipment for lifting and moving heavy components, machinery, and equipment during production and assembly processes. They are commonly used in industries such as automotive, aerospace, steel, and general manufacturing.
Steel Mills and Metal Processing: Double girder overhead cranes play a crucial role in steel mills and metal processing plants. They are designed to withstand high temperatures and harsh environments, making them suitable for handling molten metal, large steel coils, ingots, and other heavy materials.
Don't settle for less when it comes to your industrial lifting needs. Choose Bestaro's double girder overhead crane for reliable and customized service. Contact us today for more information and to place your order.
